Pipe pullIing machine
- [Return Home] [Go Back]
- Pipe pullIing machine
Model No.:
CBG-30/50/70Price:
pls contact us.Minimum Order:
1
Product Abstract:
Wanna get a FREE quote now? Just click the below FREE QUOTE button. The experts will get back to you as soon as possible.
- Product Description

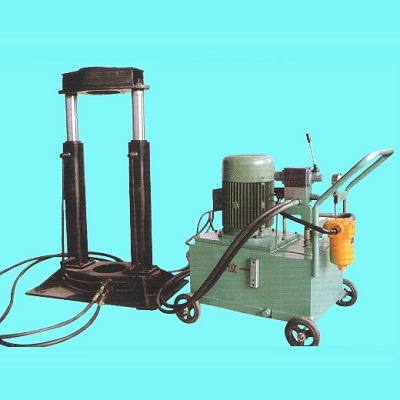

- Product Abstract:1. Machine type: Hydraulic pipe pulling machine2. Brand: iAEG3. Model: CBG-30, CBG-50, CBG-704. Condition: brand newProduct Introduce and Applications:CBG series hydraulic pulling machine is an auxiliary equipment for rock and soil anchoring engineering, is used to pull up the casing and rod from hole.It is composed of hydraulic pump, hydraulic cylinder, base, bracket and jaw etc.It has such features as light weight, good disassemble ability and convenient transport.It is specially suitable for working site such as side slope, tunnel (gallery), or mountain area.Product Main Technical Data:
Model CBG-30 CBG-50 CBG-70 Pulling Capability 30000kg 50000kg 70000kg Cylinder Stroke 500mm 500mm 500mm System Rated Pressure 20Mpa 20Mpa 20Mpa Engine Power 5.5kw 5.5kw 5.5kw Puller Machine Weight, appx 250kg 280kg 300kg Matching Jaw Size φ73; φ89; φ108; φ127; φ146; φ168; φ178; φ$194
