CMG-150A Product Abstract:

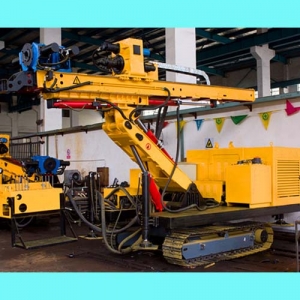

1. Machine type: full hydraulic crawler type anchoring drill rig

2. Brand: iAEG

3. Model: CMG-150A

4. Drilling diameter: φ130-φ250mm     Drilling depth: 150m

5. Contact us: Tel: +86-0510-85951355, Mobile/WeChat/WhatsApp: +86-15716179757, Email: sales@aeg-machinery.com



CMG-150A Product Applications:

This drilling rig is a kind of full hydraulic power head (top drive) multifunctional crawler drilling rig. It can be applied in construction of big tonnage stress anchoring hole for hydro power station, railway, highway, drainage hole and geologic calamity fathering for landslide prevention and rock collapse.



CMG-150A Product Features:

1. The great rotary torque of the drilling rig makes the application wider, the borehole speed faster, the accident disposal capability better and drilling work efficiency higher.

2. Extension mechanism in the output spindle of top drive power head protects drilling tools effectively.

3. The gearshift mechanism of top drive power head adopts the hydraulic shift method which has the strongpoint of the quickness, convenience, reliability, etc. of the gearshift.

4. The hydraulic clamp & wrench device enormously decreases the assistant time and also reduces the intensity of operating work

5. The rig is crawler mounted, which makes the machine move easily.

6. Most of hydraulic elements are selected from world famous brand products in order to achieve high reliability and performance stability.

7. It can be used by various drilling methods, such as: Non-cycle liquid dry auger drill DTH hammer drill in rock layer by air Mud circulation drill in sand soil layer DTH hammer with tube drill in broken rock area by air

8. CMG-150A crawler drilling rig has level system (drill arm) is able to adjust mast in different angle and height without moving drilling rig. It also can working for anchoring drilling in deep foundation basis.

9. CMG-150A drill rig can install with jet grouting device in order to drill enlarge head anchoring work. height of level during the drill work.



CMG-150A Product Technical Specifications:



Wanna Get a FREE Quote Now. Just Click Here. The experts will get back to you as soon as possible.



Our C series full hydraulic crawler type anchoring drilling rig includes 11 different models: CMG-50Q, CMG-80,CMG-100, CMG-100A, CMG-100Q, CMG-130, CMG-130Q, CMG-135B, CMG-150A, CMG-150Q and CMG-180.
