CMG-180 Product Abstract:

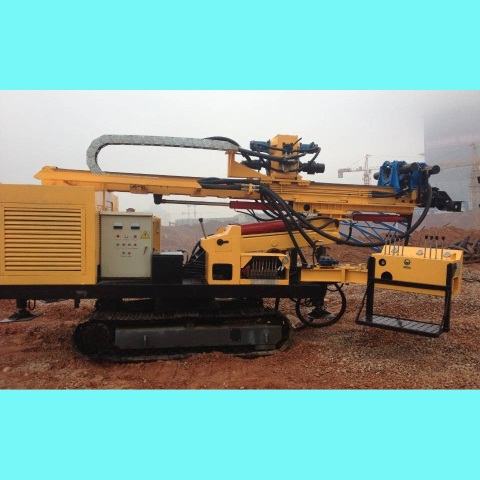

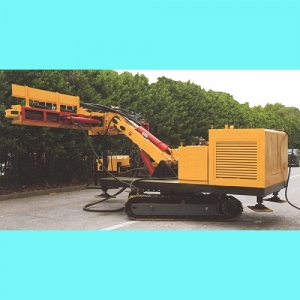

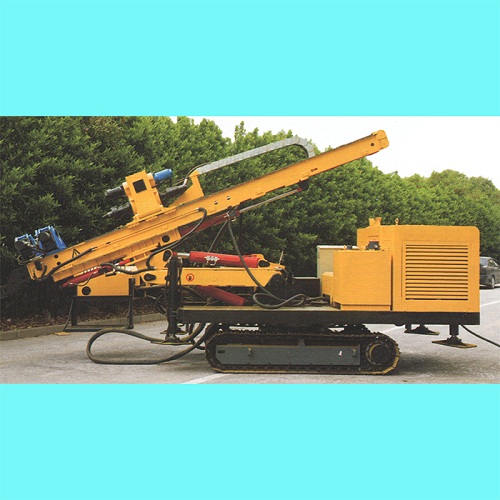

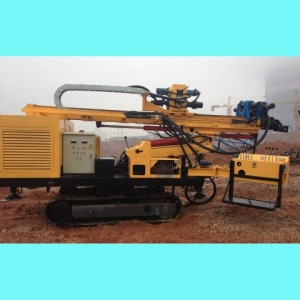

1. Machine type: full hydraulic crawler type anchoring drill rig

2. Brand: iAEG

3. Model: CMG-180

4. Drilling diameter: φ110-φ300mm     Drilling depth: 180m

5. Contact us: Tel: +86-0510-85951355, Mobile/WeChat/WhatsApp: +86-15716179757, Email: sales@aeg-machinery.com



CMG-180 Product Description and Applications:

CMG-180 is one kind of full hydraulic power head (top drive) type multifunction drilling rig. It is mounted on a crawler chassis, driven by full hydraulic system which is the common borehole machine for random angle hole in drilling work. It can be satisfied with different drilling techniques and methods, so that, it has widely application to resolve all the difficulties during the drill work even in loose cover ground, broken area or gravel area.



It is mainly applied in drilling work of the anchoring hole of high buildings deep basement foundation anchoring and reinforcement groundwork, hydraulic and hydro-power, highway and railways construction, etc. Also, it works particularly well in areas with complex geographic characteristics in drilling the drain hole and high pressure jet grouting hole and the grouting reinforcing, pipe roof drill work in tunnel construction and the blast hole etc.



CMG-180 Product Main Features:

1. Excellent

1) Rotation’s output is available to change speed and torque by gear and hydraulic satisfied with DTH hammer, casing following, casing drilling & carbide drilling and other various drill techniques for strong drill ability and wide application.

2) Long stroke, easier to control, easy accidence handling, ensure high boring efficiency and fast drill speed.

2. Economic and multifunction

1) Domestic and global leading brands hydraulic component ensuring stability and reliability.

2) Buffer in output shaft will effectively protect drill tools.

3) An alternative function is available in the case of jet grouting or drilling enlarged head anchoring work or normal simplex, duplex, triplex tube jet grouting work.

3. More automatic and semi-automatic

1) Machine installed a hydraulic clamping & breakout system in order to automatic wrench the drill pipe and tools. Both assistant time and lobar intensity are reduced during the drill work.

2) Crawler Chassis with turning platform system and mast level adjusting system make it easy and rapidly to move and get drilling hole position.



CMG-180 Drill Technology:

Dry auger - dry soil

DTH Hammer - rock area

Mud casing drill - sand or loosen area

DTH ODEX drill - gravel or broken rock area



CMG-180 Technical Specifications:



Wanna Get a FREE Quote Now. Just Click Here. The experts will get back to you as soon as possible.



Our C series full hydraulic crawler type anchoring drilling rig includes 11 different models: CMG-50Q, CMG-80,CMG-100, CMG-100A, CMG-100Q, CMG-130, CMG-130Q, CMG-135B, CMG-150A, CMG-150Q and CMG-180.
