DMG-120 Product Abstract:

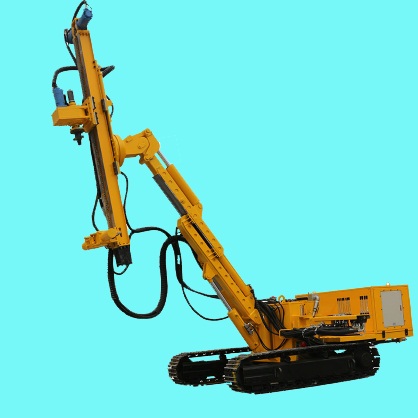

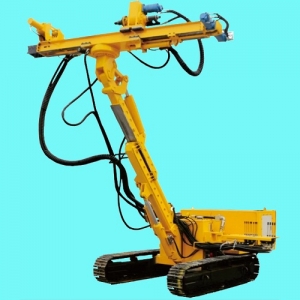

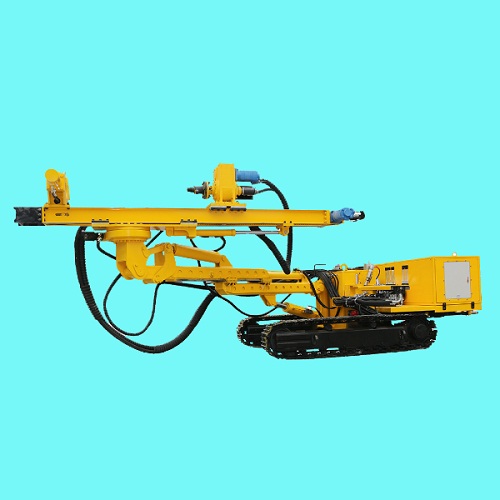

1. Machine type: full hydraulic crawler type anchoring drill rig

2. Brand: iAEG

3. Model: DMG-120

4. Drilling diameter: φ90-φ200mm     Drilling depth: 20-60m

5. Contact us: Tel: +86-0510-85951355, Mobile/WeChat/WhatsApp: +86-15716179757, Email: sales@aeg-machinery.com



DMG-120 Product Description:

This drilling rig is widely used on construction, highway, railway, hydro-power station, coal mine, tunnel and military engineering. With the nice capability of efficiency and stability, it can drill quickly various complicated layers of stratum, such as gravel, clay or severe air-slaked rock. Thus, this type of machine is suitable for kinds of anchoring engineering.



DMG-120 Technical Advantages:

1. The drilling technique could be DTH drilling, casing drilling or directly dig-in anchoring drilling.

2. It adopts adjustable telescopic boom that can make the horizontal height reach 4.5 meters and the vertical height be 6.8 meters.

3. The mast can rotate to work from 0-360 degree and the big boom can wave from side to side to work in different angle.

4. The distance of the power head could reach 3 meters and the drilling rods of 1-3 meters could be selected.

5. The dust collecting device could be chosen to reduce the dust to make a better working environment.



DMG-120 Performance Parameters:

1. Motor power: 30 kw

2. Diesel power: 37 kw

3. Double- power/Diesel for moving and motor for drilling: 30 kw for motor and 37 kw for diesel

4. Air consumption: 9-22 m³/min

5. Hole diameter: 90-200 mm

6. Hole depth: 20-60 meters

7. Matching percussive unit: CIR, DHD

8. Breaking method: percussion and rotation

9. Drilling rod specification: 76*1500/2000/3000 mm, 89*1500/2000/3000 mm

10. Drilling angle: 0-360 degree

11. The mast returning angle: 360 degree

12. Rotating speed of the power head: 50 rpm

13. Max torque of the power head: 4000 N.m

14. Max distance of the power head: 3000 mm

15. The compensatory distance: 1000 mm

16. Max pulling force: 20 KN

17. Max feeding force: 20 KN

18. Grade ability: ≤ 25 degree

19. Ground pressure: 0.04 Mpa

20. Shipment dimension (L*W*H): 5500*2000*2500 mm

21. Gross weight: 5000 kg



Wanna Get a FREE Quote Now. Just Click Here. The experts will get back to you as soon as possible.



Our D series full hydraulic crawler type anchoring drilling rig contains 2 models: DMG-70 and DMG-120.
