DMG-160 Product Abstract:

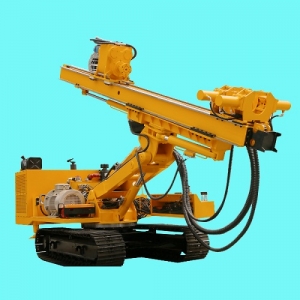

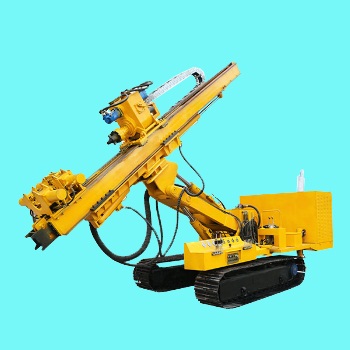

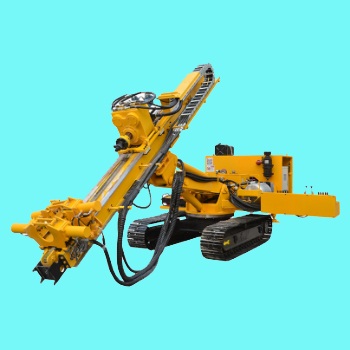

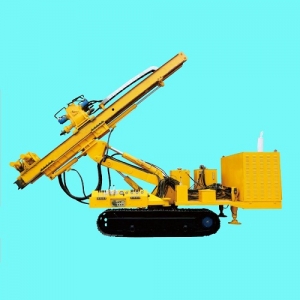

1. Machine type: full hydraulic multifunctional anchoring drill rig

2. Brand: iAEG

3. Model: DMG-160

4. Drilling diameter: φ90-φ250mm     Drilling depth: 0-150m

5. Contact us: Tel: +86-0510-85951355, Mobile/WeChat/WhatsApp: +86-15716179757, Email: sales@aeg-machinery.com



DMG-160 Product Description:

This drilling rig is widely used on construction, highway, railway, hydro-power, coal mine, tunnel and military engineering. With the nice capability of efficiency and stability, it can drill quickly various complicated stratum, such as gravel, clay or strong-weathered rock. Thus, this type of machine is suitable for kinds of anchoring engineering.



DMG-160 Product Features:

1. The drilling technique could be DTH drilling, casing drilling or spiral drilling.

2. The horizontal height can reach 3.5 meters and the vertical height 8 meters.

3. It adopts excavator chassis, it could rotate from 0-360 degree.

4. It’s stabler and safer while drilling since there are two hydraulic legs equipped.

5. It can save the energy since it adopts prior valve, variable piston pump and load feedback system.

6. The distance of the power head could reach 3.5 meters and the drilling rods of 1-3 meters could be selected.

7. The dust collecting device could be chosen to reduce the dust to make a better working environment.

8. The clamp holder could be equipped to disassemble the drilling rod to save the labor cost.

9. The power head rotate speed is adjustable as it has two gears.



DMG-160 Product Technical Parameters:



Parameters for DTH drilling series:

1. Motor power: 55 kw

2. Diesel power: 74 kw

3. Double- power: 55 kw for motor and 74 kw for diesel

4. Diesel for moving and motor for drilling: 55 kw for motor and 37 kw for diesel

5. Air consumption: 9-22 m³/min

6. Hole diameter: 90-250 mm

7. Hole depth: 0-150 meters

8. Matching percussive unit: CIR, DHD

9. Breaking method: percussion and rotation

10. Drilling rod specification: 76*1500/2000/3000 mm, 89*1500/2000/3000 mm

11. Drilling angle: 0-360 degree

12. The part above the chassis rotating angle: 360 degree

13. Rotating speed of the power head: 35-70 rpm

14. Max torque of the power head: 8000 N.m

15. Max distance of the power head: 3500 mm

16. The compensatory distance: 1000 mm

17. Max pulling force: 60 KN

18. Max feeding force: 50 KN

19. Ground pressure: 0.04 Mpa

20. Shipment dimension (L*W*H): 6600*2000*2700 mm

21. Gross weight: 8500 kg



Parameters for top drive series:

1. Motor power: 75 kw

2. Diesel power: 132 kw

3. Diesel for moving and motor for drilling: 75 kw for motor and 37 kw for diesel

4. Drilling angle: 0-360 degree

5. The part above the chassis rotating angle: 360 degree

6. Rotating speed of the power head: 46-92 rpm

7. Max torque of the power head: 11500 N.m

8. Impact power: 800 J

9. Impact rate: 2500 Bpm

10. Max distance of the power head: 3500 mm

11. The compensatory distance: 1000 mm

12. Max pulling force: 60 KN

13. Max feeding force: 60 KN

14. Rated pressure of the hydraulic system: 25 Mpa

15. Rod tail specification: R32/T38/T45

16. Climbing ability: ≤ 25 degree

17. Ground pressure: 0.04 Mpa

18. Shipment dimension (L*W*H): 6600*2000*2800 mm

19. Gross weight: 9200 kg



Wanna Get a FREE Quote Now. Just Click Here. The experts will get back to you as soon as possible.



A.E.G full hydraulic multifunctional anchoring drilling rig has 2 models: DMG-100 and DMG-160.
