- high pressure jet grouting drilling rig
Model No.:
AXP-60Price:
Pls contact us.Minimum Order:
1
Product Abstract:
Wanna get a FREE quote now? Just click the below FREE QUOTE button. The experts will get back to you as soon as possible.
- Product Description

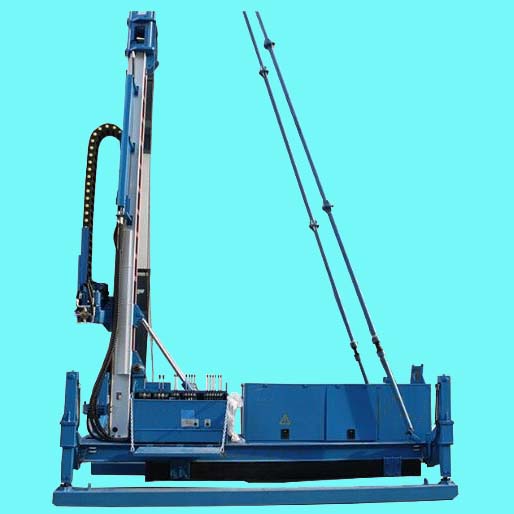

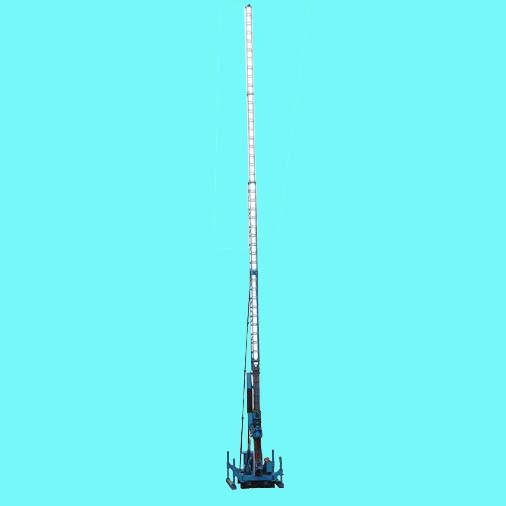

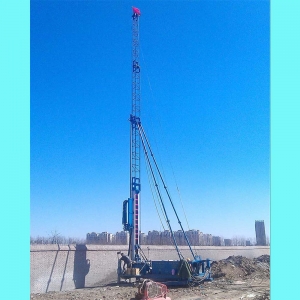

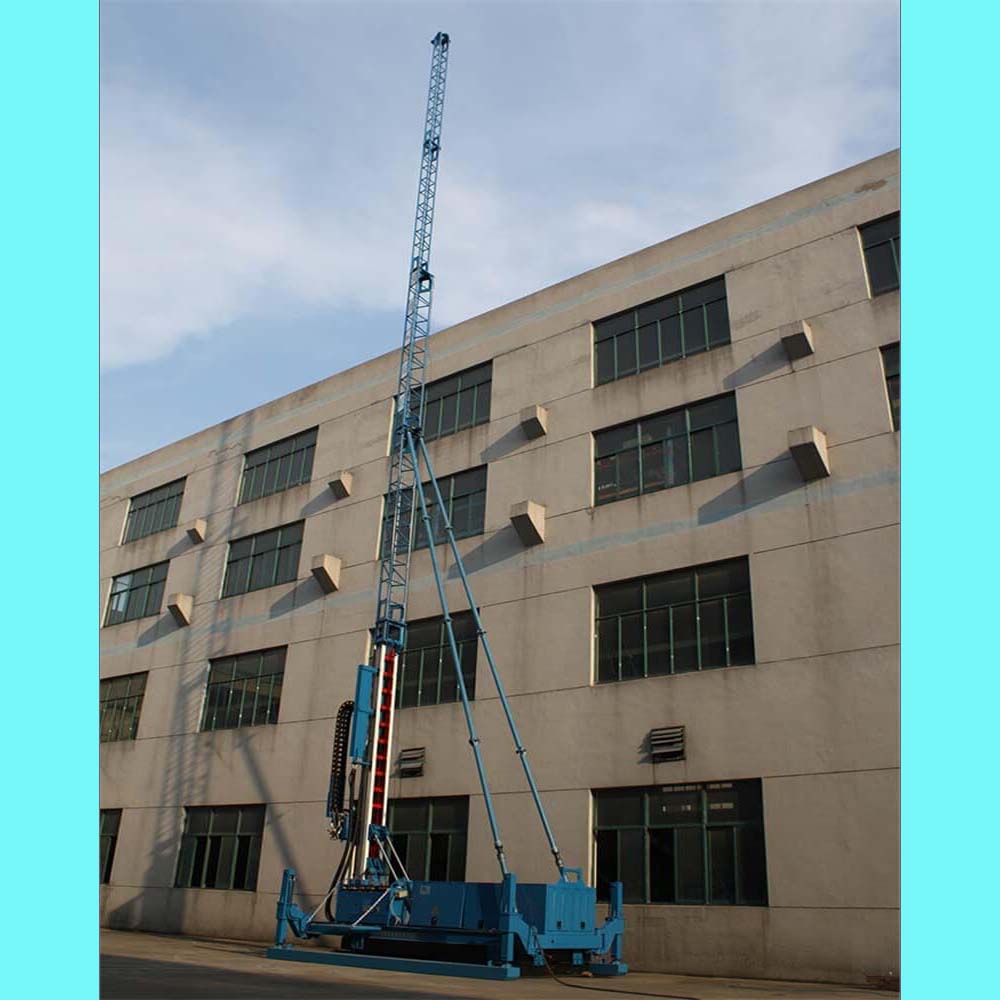

- AXP-60 Product Abstract:1. Machine type: high pressure jet grouting drilling rig2. Brand: iAEG3. Model: AXP-604. Drilling diameter: Jet-grouting:Single: 400-600mm Double: 600-1200mm Triple: 800-1600mm Drilling depth: 50mAXP-60 Product Introduce and Applications:This high pressure jet grouting drilling rig is mainly for soft soil reinforcement, high pressure jet grouting construction site.It can drill up to 24.5m depth in one shot in soft soil area, by the 24m height extension mast.Applications 1. Soft soil reinforcement 2. Waterproof curtain 3. anti-floating anchorAXP-60 Main Features:1. 20m Sub-Tower, which Is detachable.1) When conduct jet-grouting construction, the high tower assembling can reduce detachable times, and then save time and material.2) When conduct anti-floating anchor, it can save extra lifting cost by using its own lift.3) When conduct inclining anchor cable construction, the auxiliary tower can be detached without influencing the other functions of the machine.4) When conduct short anchor construction, the machine can achieve straight drilling through, which can be really time saving and convenient.5) The auxiliary tower is a standard design, 4 sections can be freely combined into 5meters, 15meters, 20meters.2. Power Head (Through-Hole Type)1) With its 92mm diameter, it can guarantee clear pass for dia89mm drilling rod. It can also meet the requirements of triple pipe jet grouting construction and anchoring.2) With its hydraulic crawler chuck, it is much more convenient and easier for changing the drilling tools.3) With its large torque of power head and our intensive drilling tools, it can achieve drilling through without making any guiding holes, which can save a lot of time.AXP-60 Main Technical Specifications:
Hole depth (m) 50 Rod diameter (mm) φ73,φ89 Jet-grouting Single, double, triple Stake diameter (mm) 400~600,600~1200,800~1600 Length of Joint pipe 7,12,17,24 Hole angle(°) 0~90 Rotary speed (r/min) 0~20?25?50?60?125 Max torque (N.m) 7000 Power head feeding stroke (mm) 4000 Lifting force (kN) 66 Lifting speed (m/min) 0~1.3(adjustable)/8/18/27 Feeding force (kN) 33 Feeding speed (m/min) 1.3~2.6 Elevating power of winch (Main winch) (kN) 10 Elevating power of winch (Vice winch) (kN) 5 Cross-country height 300 Longitudinal shift 800 Lateral shifting 500 Diesel or Electric engine is alternative Power(kW)
Diesel Power
Electric Engine Power82
45+15Transport Dimension (L*W*H)(mm) 5800*2060*2414 Working Dimension (L*W*H)(mm) 5800*3180*26465 Weight (kg) 10000 Digital readout(monitor) Without monitor A.E.G high pressure type jet grouting drilling rig contains the below 4 different models: AXP-60, AXP-60A, BXP-30B and BXP-65.
