CMG-30 Product Abstract:

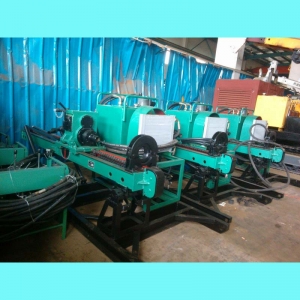

1. Machine type: side slope split type anchoring drill rig

2. Brand: iAEG

3. Model: CMG-30

4. Drilling diameter: φ80-φ130mm     Drilling depth: 40-30m

5. Contact us: Tel: +86-0510-85951355, Mobile/WeChat/WhatsApp: +86-15716179757, Email: sales@aeg-machinery.com



CMG-30 Product Description:

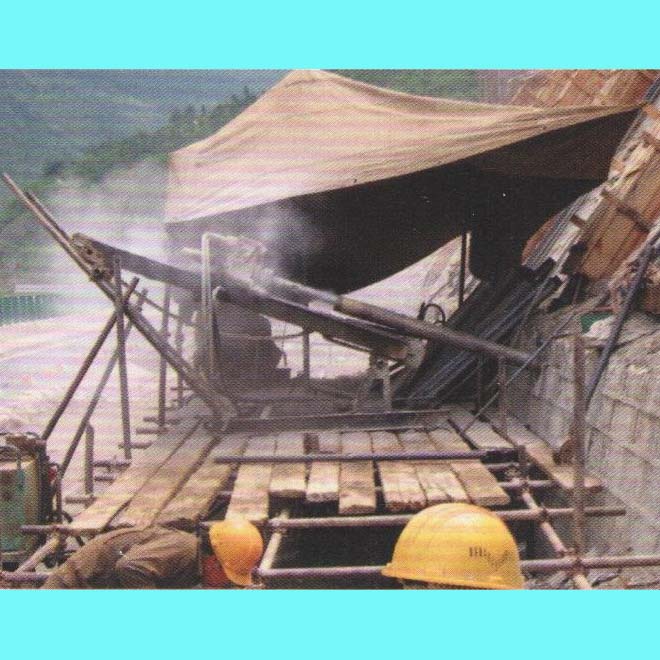

CMG-30 construction drilling rig is used for drilling anchor holes in deep base pit of high building,anchor and reinforce side-slope for water conservatory project, water power station project,railways and highways . Especially used for drilling anchor holes in high position side-slope protection and drainage holes.



CMG-30 Main Features:

1. This drilling rig is a full hydraulic operated top drive power head drill. It is composed of main set, control panel and pump which are connected together with flexible joint. So it features simple in structure, good disassembility and convenient to mount and transport.

2. Operating drill through the centralized control panel ensures assure safety operation and on-site cleanliness.

3. Transmission, built in the power head, has two speed range ?high and low. It can meet the requirements of both DTH hammer drilling and carbide bit drilling.

4. Hydraulic part is an international famous brand product which ensures drilling rig's high reliability and permanence stability.



CMG-30 Technical Data Sheet:



Wanna Get a FREE Quote Now. Just Click Here. The experts will get back to you as soon as possible.



Our C series side slope split type anchoring drilling rig contains 8 models: CMG-30, CMG-40, CMG-50, CMG-60, CMG-70, CMG-80, CMG-100 and CMG-120.
