underground tunnel drill rig
- [Return Home] [Go Back]
- underground tunnel drill rig
Model No.:
EKD-3APrice:
pls contact us.Minimum Order:
1
Product Abstract:
Wanna get a FREE quote now? Just click the below FREE QUOTE button. The experts will get back to you as soon as possible.
- Product Description

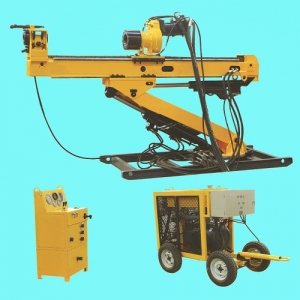

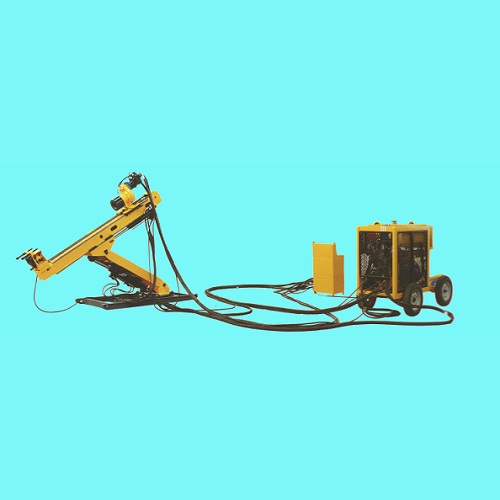

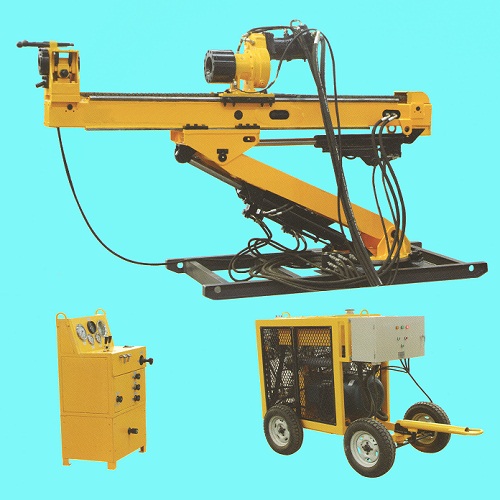

- EKD-3A Product Abstract:1. Machine type: underground tunnel drill rig2. Brand: iAEG3. Model: EKD-3A4. Drilling depth: φ55x1500 mm drill rod, 300m φ71x1500 mm drill rod: 200mEKD-3A Product Introduce:This full hydraulic underground drilling rig is mainly applied in the fields of coal, geology, metallurgy, and engineering.It is used for drilling big diameter gas drainage hole and water injection hole in mines, gallery and coal mine; big diameter horizontal hole of surface engineering working.Also for big diameter roller bit drilling, hard tungsten carbide drilling and percussion rotary drilling.EKD-3A Product Features:1. It is separate in structure, small in size, light in weight, flexible in movement and convenient in operation.2. The hydraulic pump is driven by explosion-proof electric motor through operating system, then the hydraulic pump enforces hydraulic motor to make drill head rotate, and at the same time, the movement of drill head is realized by oil cylinder & chain double speed mechanism.3. Hydraulic chuck can satisfy the function of shackles and power-off protection.4. The sliding and extending & retracting function of the mast makes it convenient for the bottom of mast to touches the ground or platform, thus the drill rig will be more stable.5. The swinging arm and mast can do luffing movement, which satisfy the request of multi-angle drilling.6. The range of spindle rotating speed is wide and the torque is large.EKD-3A Main Technical Data:
Drilling depth φ55 drill rod 300 m Drill rod spec φ55X1500 mm φ71 drill rod 200 m φ71X1500 mm The range of spindle rotating speed 425-1280 rpm The max. rotating torque of spindle 795 N.m The working pressure 25 MPa Spindle stroke 1600 mm The max. Lifting force of drill head 62 kN The max. Feeding force of drill head 33 kN The sliding stroke of mast 495 mm The swing angle of mast bracket (left & right) 90° The swing angle of arm (up and down) 100° Power unit YB225M-4(dIICT4) Explosion-proof electric motor 45 kW/1480 rpm Dimensions Main machine (LxWxH) 2950X950X1850 mm Weight Main machine 1000 kg Power unit(LxWxH) 1900X980X1320 mm Power unit 1050 kg Operation cabinet(LxWxH) 540X360X1080 mm Operation cabinet 140 kg Our E series underground tunnel drill rig contains 2 models: EKD-3A and EKD-4.
