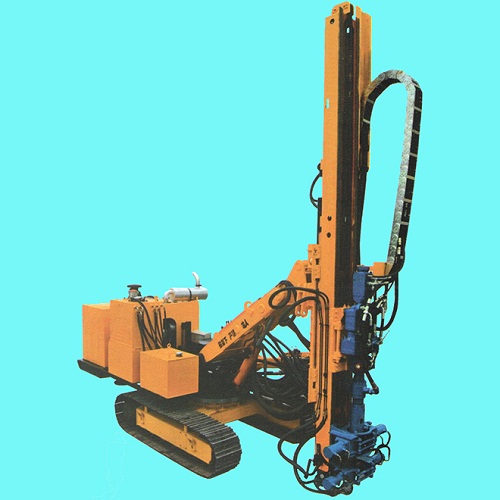

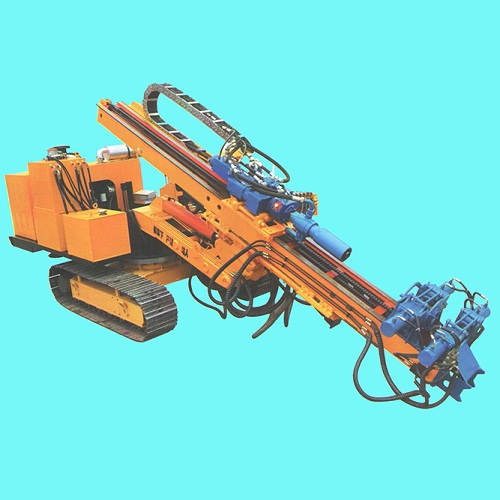

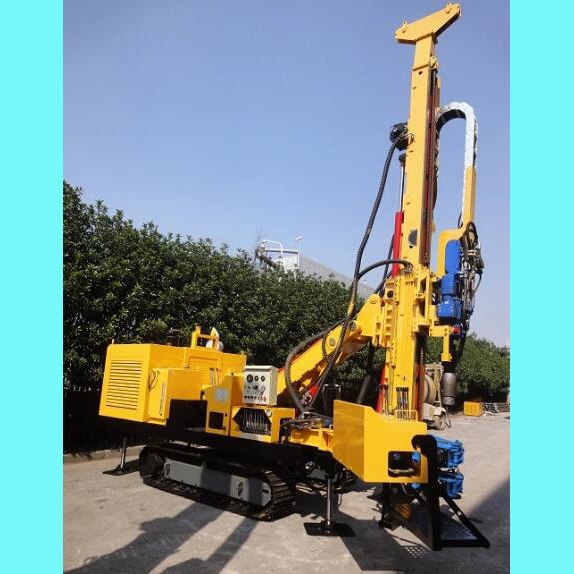

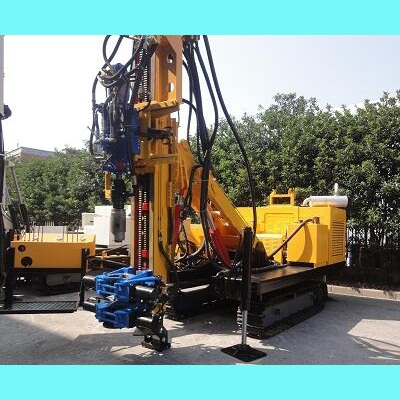

- full hydraulic top drive anchoring drilling rig
Model No.:
CMG-C150Price:
Pls contact us.Minimum Order:
1
Product Abstract:
Wanna get a FREE quote now? Just click the below FREE QUOTE button. The experts will get back to you as soon as possible.
- Product Description
- CMG-C150 Product Abstract:1. Machine type: full hydraulic top drive anchoring drilling rig2. Brand: iAEG3. Model: CMG-C1504. Drilling diameter: φ130-φ250mm Drilling depth: 150-80mCMG-C150 Product Applications:It has been widely used in pipe sheds drilling of the tunnel construction; grouting reinforcing hole drilling; also the drain hole and large tonnage prestressed anchoring hole of the geotechnical engineering, such as boreholes on side slopes of dams, railways, highways, etc; GSHPs hole and water well or water exploration hole; and the drilling holes of landside preventing and the treatment engineering of rock collapse.It has very simple construction, cheap cost and better performance which can apply with casing impact and rotating drilling instead of similar or function imported model. It has an outstanding efficiency during casing impact and rotating drill work in loose cover, gravel, sand&gravel, soil&gravel, broken rock area and so on.CMG-C150 Main Features:1. It has adopted top hydraulic rotary power head impact which is Germany imported, multi-angle drilling, and excellence performance.2. The speed of borehole is faster than traditional machine.3. It has no dull pollution and no need air-compressor when drill the incompact ground area, the gravel place and fragment rock stratum.4. Special tube drilling technical. It can drilling fast and insure project firmly.5. In complex condition, it can use double tube rotating drilling, in order to make hole stable and easy to slip casting.6. The drilling rig can be applied for different technique methods and a variety of ground conditions. Especially in the difficult work condition, such as the incompact ground area, the gravel place, and the fragment rock stratum, this drilling can always provide the operator excellent solutions.CMG-C150 Technical Parameters:Hydraulic Crawler Drilling RigCMG-C150Total weight kg7500length x width x height (transport status) mm6100 × 2100 × 2350Ambient temperature ° C-10 ~ 38nominal drilling depth m150 ~ 80Drilling diameter mm130 ~ 250drilling inclination degree-90 ~ 15Horizontal drilling range mm2050 ~ 3050at the top of the impact of rotary power head (original German imports)General / rotary accelerationOutput speed ?rpm32/60output torque ?N.m9000/7500Output speed ?rpm64/120output torque ?N.m4500/3500Impact hammerimpact energy N.m400Impact frequency Min-11800power head feedStroke mm3500feed force kN45promoted force kN60mastslip stroke mm400mast swing angle degrees-30 ~ right 90 or -90 ~ 30power machineCummins DieselPower kW75Speed rpm2000Fuel tank capacity L150crawler chassisPD135Shoe width mm400Ground Pressure MPa<0.05platform back angle degrees-30 ~ right 90 or -90 ~ 30gradeability degree≤20Optionshydraulic winch centrifugal slurry pump or drain pumpA.E.G C series full hydraulic top drive crawler type anchoring drilling rig contains 2 models: CMG-C150 and CMG-C200.
