- full hydraulic top drive anchoring drilling rig
Model No.:
CMG-C200Price:
Pls contact us.Minimum Order:
1
Product Abstract:
Wanna get a FREE quote now? Just click the below FREE QUOTE button. The experts will get back to you as soon as possible.
- Product Description

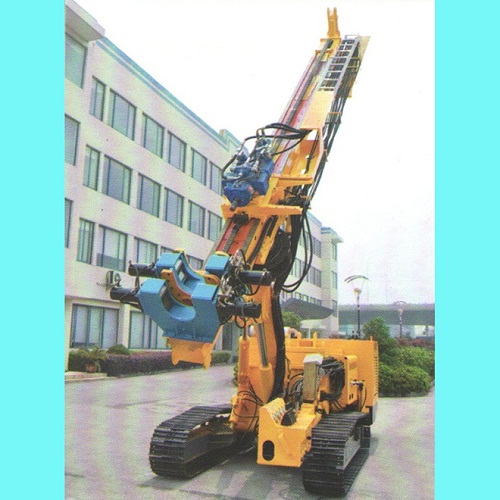

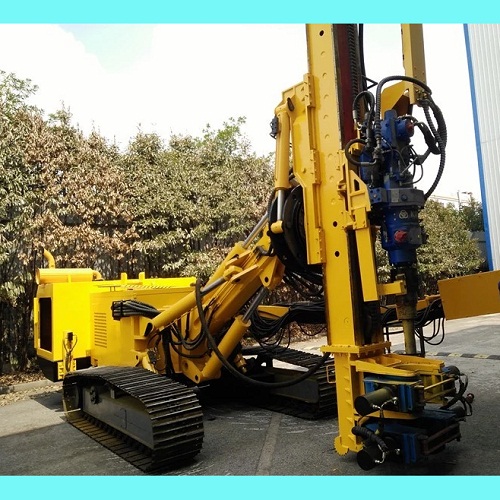

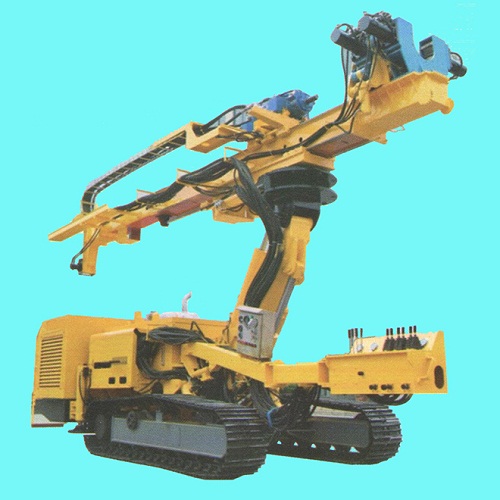

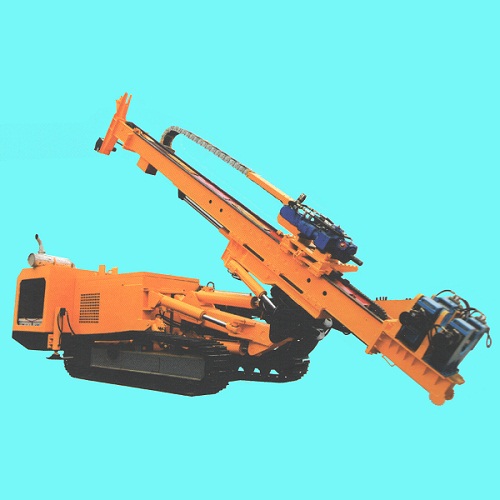

- CMG-C200 Product Abstract:1. Machine type: full hydraulic top drive anchoring drilling rig2. Brand: iAEG3. Model: CMG-C2004. Drilling diameter: φ130-φ250mm Drilling depth: 200mCMG-C200 Product Applications:It has been widely used in pipe sheds drilling of the tunnel construction; grouting reinforcing hole drilling; also the drain hole and large tonnage prestressed anchoring hole of the geotechnical engineering, such as boreholes on side slopes of dams, railways, highways, etc; GSHPs hole and water well or water exploration hole; and the drilling holes of landside preventing and the treatment engineering of rock collapse.It has very simple construction, cheap cost and better performance which can apply with casing impact and rotating drilling instead of similar or function imported model. It has an outstanding efficiency during casing impact and rotating drill work in loose cover, gravel, sand&gravel, soil&gravel, broken rock area and so on.CMG-C200 Main Features:1. It has adopted top hydraulic rotary power head impact which is Germany imported, multi-angle drilling, and excellence performance.2. The speed of borehole is faster than traditional machine.3. It has no dull pollution and no need air-compressor when drill the incompact ground area, the gravel place and fragment rock stratum.4. Special tube drilling technical. It can drilling fast and insure project firmly.5. In complex condition, it can use double tube rotating drilling, in order to make hole stable and easy to slip casting.6. The drilling rig can be applied for different technique methods and a variety of ground conditions. Especially in the difficult work condition, such as the incompact ground area, the gravel place, and the fragment rock stratum, this drilling can always provide the operator excellent solutions.CMG-C200 Technical Parameters:

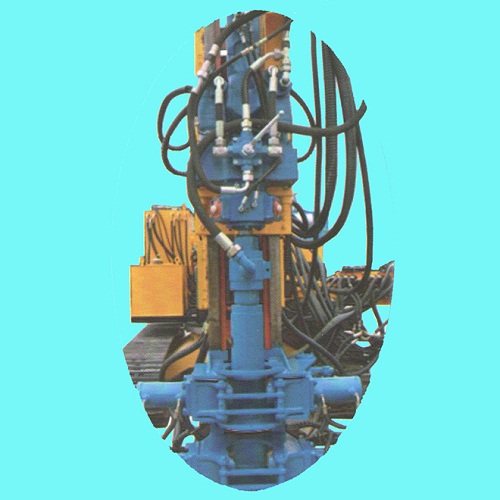

Borehole Depth(m) 200 Borehole Diameter(mm) 130~250 Drill Angle(°) -90~20 ; -45~45 Horizontal Drilling Range(mm) 2675~3970 Drill Head Data HB50A(standard) ; (HB40A [made in China] ;
YDH60 [made in Taiwan])Output Rotation Speed(rpm) 28/55 ; 55/110 Max Output Torque(Nm) 12500 Impact Frequency(times/min) 535 Impact Energy(J) 1900 Feeding Stroke(mm) 4000 Drill Head Max.Lifting Force(KN) 65 Drill Head Max.Thrust Force(KN) 45 Model of Diesel Engine(KN) 6BTA5.9-C125 Engine Power(KW) 125 Climb Ability(°) <20 Drilling Rig Weight(kg) 12500 Overall Dimension(mm) (Drill Reduce Type) 7439*2300*2716 A.E.G C series full hydraulic top drive crawler type anchoring drilling rig contains 2 models: CMG-C150 and CMG-C200.
