- underground tunnel drill rig
Model No.:
CKD-300ZPrice:
pls contact us.Minimum Order:
1
Product Abstract:
Wanna get a FREE quote now? Just click the below FREE QUOTE button. The experts will get back to you as soon as possible.
- Product Description

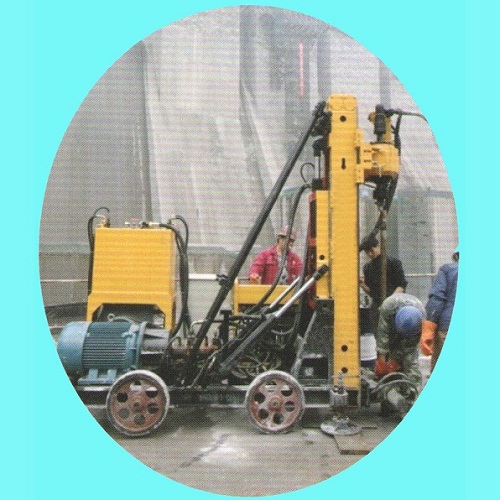

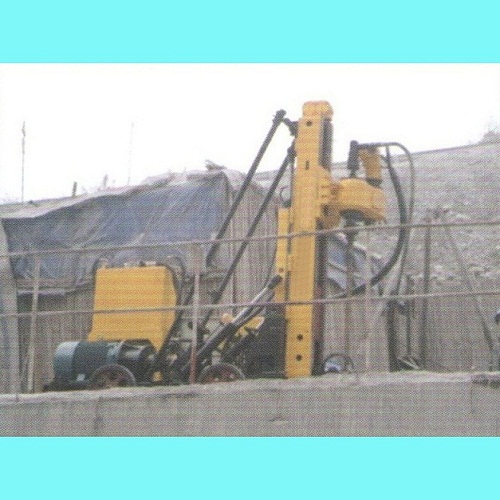

- CKD-300Z Product Abstract:1. Machine type: underground tunnel drill rig2. Brand: iAEG3. Model: CKD-300Z4. Drilling diameter: φ110-φ75mm Drilling depth: 300mCKD-300Z Product Introduce:This underground drilling rig is a full hydraulic operated power head drilling machine, which is principally applied for grouting borehole, also can be used for core drilling of geological exploration in tunnel (gallery). It can also drill water draining hole.CKD-300Z Main Features:1. Hydraulic component (hydraulic motor, hydraulic pump, quick oil adapter etc) adopted world-famous brand goods, so it has stable running performance, reliable product quality and long service life.2. Drill rig structure is a block structure design. It assures good disassembility , rapid and convenient mount and transport, as well as remote control and operation.3. It has a wide range of rotary speed, and is suitable for various drilling methods such as carbide bit drilling and diamond bit drilling etc.4. It has a complete range of functions, great drilling capability, wide range of application , rapid drilling speed and high drilling efficiency, easy to operate as well as powerful ability of solving accidents.CKD-300Z Main Technical Data:
Vertical Borehole Depth(m) 300 End Hole Diameter(mm) φ110-φ75 Recommended Drill Rod(mm) φ50x1500 ;φ60x1500 ; φ73x1500 ; Drill Angle(°) -60~0~60 Drill Head Rotary Speed (FR/RE)(rpm) 0~600 Drill Head Feeding Stroke(mm) 1600 Drill Head Max. Lifting Force(KN) 60 Drill Head Max. Thrust Force(KN) 40 Engine Power (electromotor)(kW) 37 Drilling Rig Weight, appx.(kg) 2500 Overall Dimension (Drill Reduce Type)(mm) 3000x1580x1900 Our C series underground tunnel drill rig includes 5 models: CKD-100, CKD-200, CKD-300, CKD-300Z and CKD-500.
