- underground tunnel drill rig
Model No.:
CKD-500Price:
pls contact us.Minimum Order:
1
Product Abstract:
Wanna get a FREE quote now? Just click the below FREE QUOTE button. The experts will get back to you as soon as possible.
- Product Description

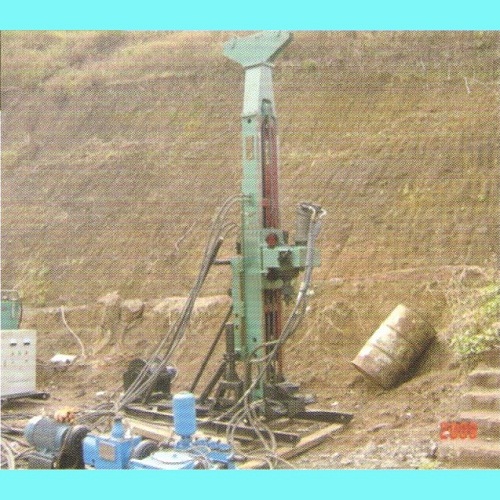

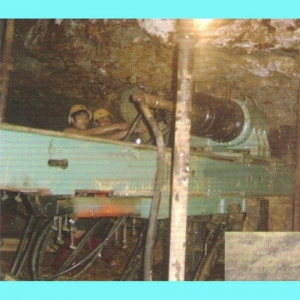

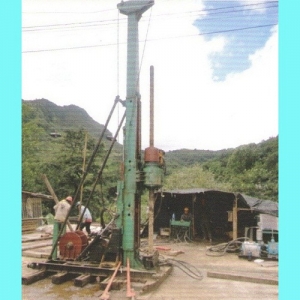

- CKD-500 Product Abstract:1. Machine type: underground tunnel drill rig2. Brand: iAEG3. Model: CKD-5004. Drilling diameter: 95/75/56mm HQ/NQ/BQ Drilling depth: 300/500/600mCKD-500 Product Introduce:CKD-500 underground drilling rig is a full hydraulic operated power head drilling machine and is used for core drilling of geological exploration in tunnel (gallery).It can also drill gas drainage hole and water draining hole.CKD-500 Main Features:1. Hydraulic component (hydraulic motor, hydraulic pump, quick oil adapter etc) adopted world-famous brand goods, so it has stable running performance, reliable product quality and long service life.2. Drill rig structure is a block structure design. It assures good disassembility , rapid and convenient mount and transport, as well as remote control and operation.3. It has a wide range of rotary speed, and is suitable for various drilling methods such as carbide bit drilling and diamond bit drilling etc.4. It has a complete range of functions, great drilling capability, wide range of application , rapid drilling speed and high drilling efficiency, easy to operate as well as powerful ability of solving accidents.CKD-500 Main Technical Data:
Vertical Borehole Depth(m) 300/500/600 End Hole Diameter(mm) 95/75/56 HQ/NQ/BQ Recommended Drill Rod(mm) φ71; φ50; φ42 HQ; NQ; BQ Drill Angle(°) -90~0~90 Drill Head Rotary Speed (FR/RE)(rpm) 0~1000 Drill Head Feeding Stroke(mm) 1800 (Optional 1000) Drill Head Max. Lifting Force(KN) 65 Drill Head Max. Thrust Force(KN) 35 Engine Power (electromotor)(kW) 55 Drilling Rig Weight, appx.(kg) 2800 Overall Dimension (Drill Reduce Type)(mm) 4200x1100x1600 Our C series underground tunnel drill rig includes 5 models: CKD-100, CKD-200, CKD-300, CKD-300Z and CKD-500.
