AGM60-40 Product Abstract:

1. Pump name: grouting pump with mixer

2. Brand: iAEG

3. Model name: AGM60-40

4. Output: 60L/min, work pressure: 40 bar, total power: 11 kW

5. Contact us:  Tel: +86-510-85951355, Mobile/Wechat/WhatsApp: +86-15716179757, Email: sales@aeg-machinery.com

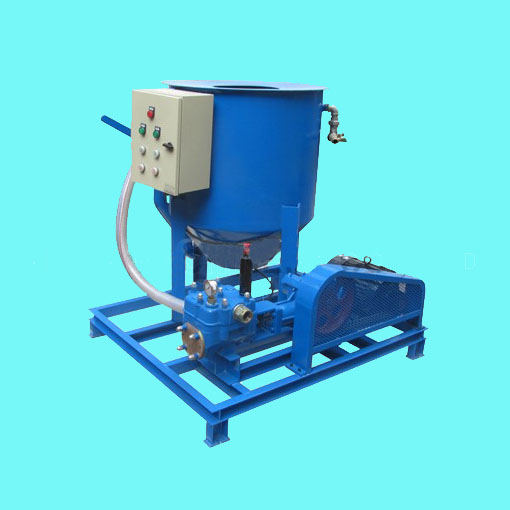

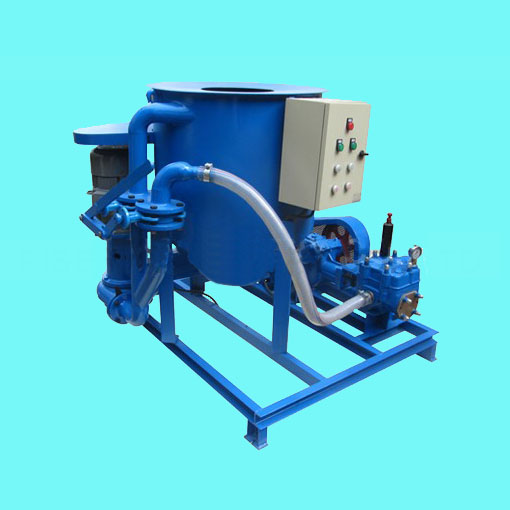

AGM60-40 Grout Mixer Pump Descriptions:

AGM60-40 is a piston pump with mixer. It is equipped with a single-piston and double-action pump as the grouting pump and a high efficiency mixer as the mixing unit. This unit can complete the mixing and grouting works by itself.



AGM60-40 Grout Mixer Pump Applications:

Appling for mixing and grouting the cement slurry or similar slurry to do the sealing, strengthening and stabilizing of rock and soil in Tunneling, Mining, Hydro-power Project, Slope Stabilizing and underground project, etc.



AGM60-40 Grout Mixer Pump Main Features:

· Suitable for the mixing & grouting of the cement slurry or other similar slurries ;

· High mixing efficiency, motor directly driving impeller to get the high-speed liquid flow, about 2~3minutes to complete a mixing;

· Single piston double acting for the grouting pump;

· Gear & Vee belt transmission makes the grouting pump high mechanical efficiency and working reliability.



AGM60-40 Grout Mixer Pump Advantages:

· Mixing Tank body manufactured in the thicker plate for more reliable work and longer use life;

· Standard gears and shaft to ensure the enough strength;

· Standard seal parts to ensure the excellent seal quality;

· All the casting units manufactured as our special design to ensure the enough strength;

· IP55 100% new electrical motor, standard Schneider electrical elements and electrical control box strictly as the CE safety standard;

· Painted after sandblasting for a pretty appearance.



AGM60-40 Grout Mixer Pump Technical Data:



A.E.G grout mixer pump contains the following 3 models: air drive AGM30-120, electric drive AGM40-200, and model AGM60-40.

A.E.G mixer grout station includes 2 different models: AGM60-100 and AGM-250.
