AGM60-100 Product Abstract:

1. Machine type: mixer grout station, mixer grout plant

2. Brand: iAEG

3. Model name: AGM60-100

4. Max grout output: 60L/min, work pressure: 10 MPa, volume of mixing tank/agitator tank: 150L/300L

5. Contact us:  Tel: +86-510-85951355, Mobile/Wechat/WhatsApp: +86-15716179757, Email: sales@aeg-machinery.com



AGM60-100 Mixer Grout Station Description:

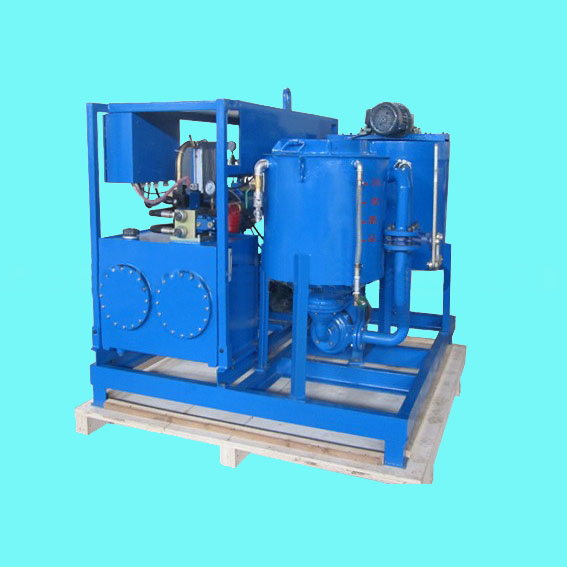

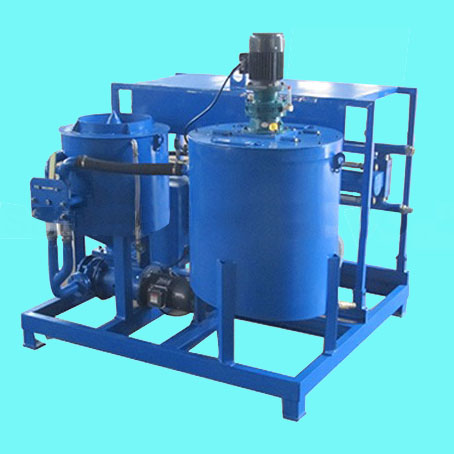

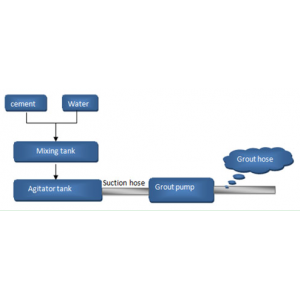

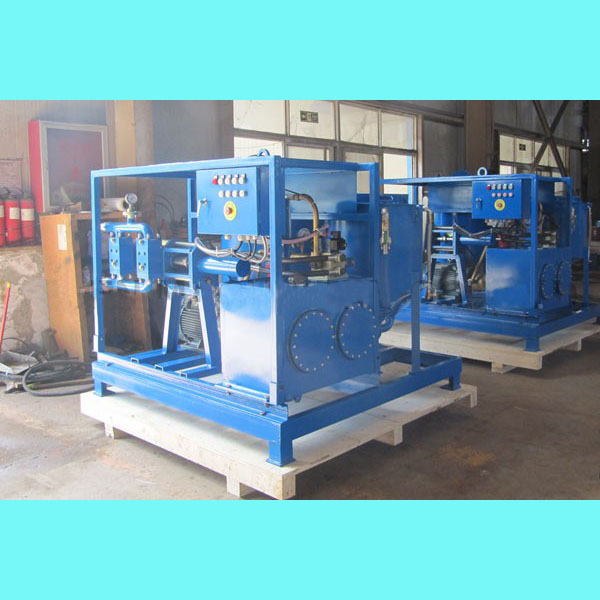

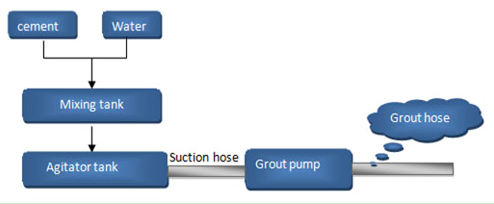

AGM60-100 is a whole unit of grouting and mixing. It consists of a mixing tank, an agitator tank and a high-pressure hydraulic grouting pump. It is applied for making the cement grout slurry and then grouting the slurry under high pressure. This grout has the advantages of simple structure, reliable work performance, high efficient slurry-making, high pumping pressure, etc. The grouting output can be adjusted continuously and the max. work pressure can be adjusted continuously, too. The recommended slurry is the cement slurry or the similar.



AGM60-100 Mixer Grout Station Applications:

Mixing the cement (or similar material) and water under high efficiency and then high pressure grout the cement slurry or similar slurry to do the sealing, strengthening and stabilizing of rock and soil in tunneling, mining, hydro-power project, slope stabilizing and underground project, etc.



AGM60-100 Mixer Grout Station Main Features:

· A whole unit with mixing and grouting;

· Plunger pump as oil pump for the reliable work under high-pressure;

· Variable displacement pump for the low heat system and high system efficiency;

· Solenoid operated directional valve or mechanical direction valve can be chose according to the different work environment.

· High mixing efficiency, motor directly driving impeller to get the high-speed liquid flow;

· High reliability, vertical-mount motor, easy to seal, low failure rate and good seal;

· Adopt the ordinary rubber pipe as consumable part for control valve, easy to get it on construction.



AGM60-100 Mixer Grout Station Advantages:

· Special electroplating for the work cylinder’s inner wall;

· Famous domestic or international standard hydraulic elements;

· Tank body manufactured by the thicker plate for more reliable work and longer use life;

· The whole stamping structure for the tank bottom;

· Special weld handling;

· IP55 100% new electrical motor;

· Electrical control box manufactured by thicker plate and standard Schneider electrical elements;

· Standard seal parts to ensure the excellent seal quality;

· Painted after sandblasting for a pretty appearance.



AGM60-100 Mixer Grout Station Technical Data:

Note: *AGM90-100 with output 90L/min is optional.



A.E.G grout mixer pump contains the following 3 models: air drive AGM30-120, electric drive AGM40-200, and model AGM60-40.

A.E.G mixer grout station includes 2 different models: AGM60-100 and AGM-250.
