medium-sized dry type shotcrete machine
- [Return Home] [Go Back]

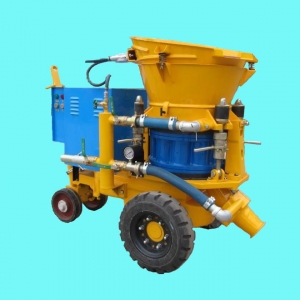

- medium-sized dry type shotcrete machine
Model No.:
ASM-5DPrice:
Pls contact us.Minimum Order:
1
Product Abstract:
Wanna get a FREE quote now? Just click the below FREE QUOTE button. The experts will get back to you as soon as possible.
- Product Description
- ASM-5D Dry type shotcrete machine Product Abstract:1. Machine type: medium-sized dry type shotcrete machine2. Brand: iAEG3. Model: ASM-5D4. Output: 5 m3/h, Max.aggregate:15 mmASM-5D DescriptionsASM-5D is medium-sized shotcrete machine for the processing of dry mix. And it is widely used by so many contractors.
It can be used for tunneling, mining operations, hydropower projects and hill side projects ,etcIt is available in following versionsBasic: electric drive can be combined with tyre chassisExtended (optional): air motor drive or diesel drive comhined with single hydraulic power pack Skid or Rail-wheelASM-5D Technical Data SheetOutput 5 m3/h Maximum horizontal convey dist 200m Suitable Mix Ratio(Cement/Sand) ≤1:4~5 Mmaximum aggregate size 15mm Conveying hose inner size 51mm Operating air pressure 0.2-0.4MPa Air consumption 7-8 m3 /min Filling Height 1.1m Rotor Speed 11r/min Motor power 5.5kW(7.5hp) Voltages 380V,440V,660V,1140V 50Hz/60Hz Basic chassis Basic chassis is tyre .Skid and rail-wheel are optional Overall Dimension 1.35×0.75×1.2m Net Weight 720kg Dimensions:
Length L : 1350 mm(2000mm,diesel)
Height H : 1200 mm
Width : 750 mm
Weight : 720 kg(730kg,diesel)
Content of hopper : 50 LitersDriveElectric (BASIC)Motor output : 5.5KW /7.5hp IP55
Speed range : 1000 rpm
Voltages : 380V50 Hz ,440V50/60 Hz, 220V50/60 HzWith air motor (AIR)Motor output : 5.9 KW/8hp
Speed range : 450-900 rpm
Pressure : 0.5 MPa/73psi
Air consumption : 7.5 m3/minDieselMotor output : 7.7hp/9hp
Speed range : 3000rpm/3600rpm
For more information, please refer to diesel engine technical data sheetTheoretical conveying date (only dry)Hose Φ (mm) 50
Conveying output (m3/h): BASIC: 5, AIR/DIESEL: 2.5-5
With theoretical filling degree of 100%. If motor with 60 Hz =20% higher conveying capacity
max. grain (mm): 15
max. conv. dist. (m) Horizontal / Vertical: 200 / 70Theoretical data for air consumption for conveyingAir consumption (m3/min): Dry spraying, 60 m-7, 120 m-8
Air consumption data are approximate values and are depending on conveying distance.
CAUTION: For the configuration AIR (with air motor) it has to be considered:
Total air consumption = Air consumption for conveying + Air consumption for air motor!A.E.G Shotcrete Machine IntroduceShotcrete process is to use compressed air to convey the pre-dampened mix through delivery hose to the nozzle to project the material onto the sprayed surface under high velocity, and then to form concrete support layer after the projected material coagulates and hardens. With simple technology, special effect, economy cost, flexibility and high construction efficiency, shotcrete technology has widely been applying in construction, railway and super highway engineering, underground engineering, tunneling, mining operations, hydropower projects and slope stabilization, etc. and showing prosperous future.A.E.G Shotcrete Machine FeaturesNon-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.A.E.G Shotcrete machine has 3 different types: dry type, wet type, dry and wet type.Dry type shotcrete machine contains: mini-sized ASM-3D, medium-sized ASM-5D, ASM-5M, ASM-7D, large-sized ASM-9D and ASM-9M.Wet type shotcrete spraying machine is model ASM-7W.Wet and dry type shotcrete spraying machine is model ASM-5R.Our robot arm shotcrete spraying machine is model ASMS-30.
