- crawler type jet grouting drilling rig
Model No.:
AXP-150D6Price:
Pls contact us.Minimum Order:
1
Product Abstract:
Wanna get a FREE quote now? Just click the below FREE QUOTE button. The experts will get back to you as soon as possible.
- Product Description

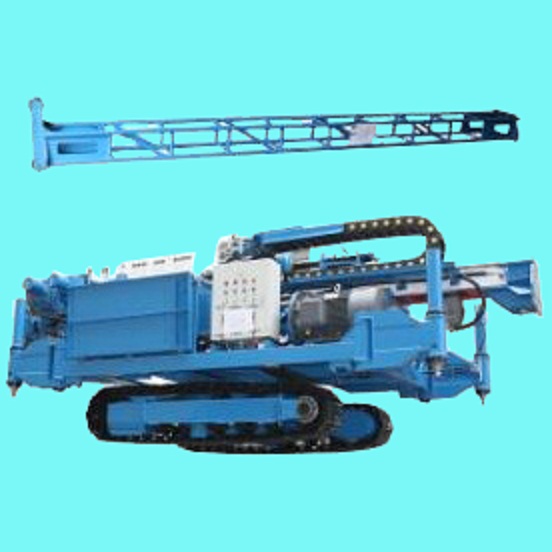

- AXP-150D6 Product Abstract:1. Machine type: crawler type jet grouting drilling rig2. Brand: iAEG3. Model: AXP-150D64. Drilling diameter: Jet grouting: Single: 400-600mm Double: 600-1200mm Triple: 800-1600mm Drilling depth: 50-80mAXP-150D6 Product Introduce:AMG-150D6 multifunctional drilling rig is designed according to the construction sequence: Foundation Engineering Jet Grouting - Anchoring - Anti Floating Anchor.AXP-150D6 Main Characters:1. Assembly 10m Auxiliary Tower (Extension Mast), which Is detachable.1) In jet-grouting construction, through the high tower assembling, it can reduce assembling and disassembling times, which helps saving time and material.2) In anti-floating anchor, it can help save extra lifting fee by using its own lift.3) In inclining anchor cable construction, the auxiliary tower can be detached without influencing the other functions of the machine.4) In short anchor construction; the machine can achieve straight drilling through, which can be really time saving and convenient.2. Power Head (Through-Hole Type)1) With its 92mm diameter, it can guarantee clear pass for dia89mm drilling rod. It can also meet the requirements of triple pipe jet grouting construction and anchoring.2) With its hydraulic crawler chuck, it is much more convenient and easier for changing the drilling tools.3) Large torque. In most layers, equipped with our intensive drilling tools, it can finish drilling without making any guiding holes, which saves a lot of time.4) Moving by crawler, It can move easily even in soft ground.3. Crawler Track UnitTrack chassis with high grounding ratio is selected. So it can move freely even on soft ground.4. Orifice Guide Device1) This device guarantees precision of construction angle and verticality.2) In jet grouting construction, it is helpful for detaching drilling tools.3) In anchoring construction, it can improve strained condition of steel tube, promote higher construction precision.4) With special rotating mechanism, it can reduce wear of drilling tools.AXP-150D6 Main Technical Data:Jet-groutingSingle, double, tripleStake diameter (mm)400-600, 600-1200, 800-1600Hole depth(m)50 - 80Rod diameter(mm)φ73, φ89Length of connecting drill pipe at one time (m)13Hole angle (°)0~90Rotary speed (r/min)9, 18, 25, 30, 35, 50, 55, 60, 65, 70, 110, 130Max torque (N.m)7500Power head feeding stroke (mm)3400Mast sliding frame stroke (mm)1500Feeding force (kN)70Lifting speed (m/min)0~5 (adjustable) / 7 / 23 / 30Feeding force (kN)36Feeding speed (m/min)0~10 (adjustable) / 14 / 46 / 59Elevating power of winch (kN)15Diesel or Electric engine is alternativeElectric engineDiesel engine (kW)55+18.592Dimension (L*W*H) (mm)5800*2100*2200Weight (kg)6500A.E.G crawler type jet grouting drilling rig contains different 4 models as below: AXP-150D6, BXP-20A, BXP-150X and CXP-20XL.
