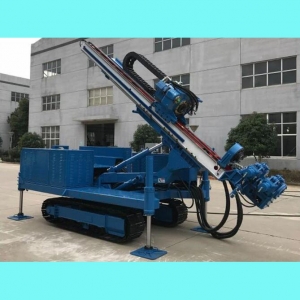

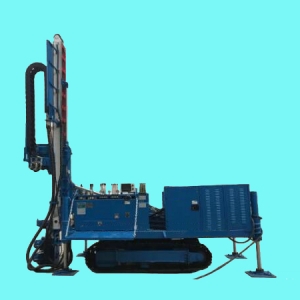

- crawler type jet grouting drilling rig
Model No.:
BXP-150XPrice:
Pls contact us.Minimum Order:
1
Product Abstract:
Wanna get a FREE quote now? Just click the below FREE QUOTE button. The experts will get back to you as soon as possible.
- Product Description
- BXP-150X Product Abstract:1. Machine type: crawler type jet grouting drilling rig2. Brand: iAEG3. Model: BXP-150X4. Drilling diameter: φ150-φ250mm Drilling depth: 130-170mBXP-150X Product Characters:Compared with the traditional crawler anchoring rig, this type has the following characteristics:1. The power head of the drill is through hole hydraulic chuck type. Various kinds of drill rods can be clamped by replacing different chucks, which has good construction versatility.2. The power head has a larger transmission ratio and larger torque than the same type of drilling rig, so it can adapt to more complex working conditions.3. The sliding frame with lifting function can satisfy the maximum lifting height of 3.3m, with a sliding stroke of 1.2m, the construction scope is wider.4. Rotation and reciprocating actions are fed back by real-time information of sensors and coders, and driven by electro-hydraulic controller to realize rotating movements continuous or swinging, reciprocating action continuous or stepping. The construction technology of RJP or ordinary jet grouting and swing grouting is further realized.5. The machine is equipped with orifice centralizer and shackle clamper, which has excellent drill rod guiding performance and the ability to load and unload drill rod.BXP-150X Product Applications:1.The rig is suitable for RJP process construction engineering. Rotary and reciprocating movements are controlled by PLC electro-hydraulic system, which can realize automatic operation.2.Full hydraulic chuck gyrator can pass through the drill rod φ114 at most. After replacing the chuck, it can also be used in general jet grouting, anchoring and other process construction.BXP-150X Main Technical Data:
Hole diameter (mm) Φ150~Φ250 Hole Depth (m) 130~170 Max.diameter of rod(m Φ114 Drill angle (°) 0~90 Power head Torque (N.m) 8500 Power head rotary speed (r/min) 10, 20, 23, 30, 0~30, 46, 0~60, 63, 126 Power head lifting force (kN) 70 Lifting speed (r/min) 0~5 (adjustable), 7, 23, 30 Rotary head feeding force (kN) 36 Feeding speed (r/min) 0~10 (adjustable), 14, 46, 59 Feeding Stroke (mm) 3400 Slide stroke (mm) 1200 Climbing angles 25° Power (electric-motor) (kW) 55+18.5+3 Dimension of Work status (L*W*H) mm 4500*2500*5600 Dimension of transport status(L*W*H) mm 5500*2200*2000 Weight(kg) 7100 A.E.G crawler type jet grouting drilling rig contains different 4 models as below: AXP-150D6, BXP-20A, BXP-150X and CXP-20XL.
