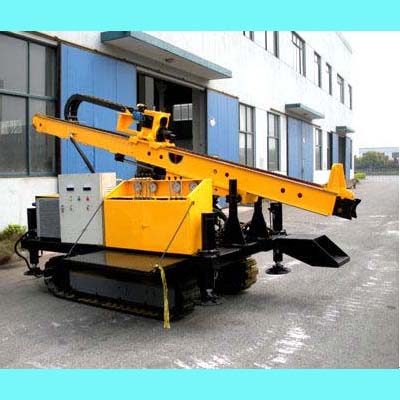

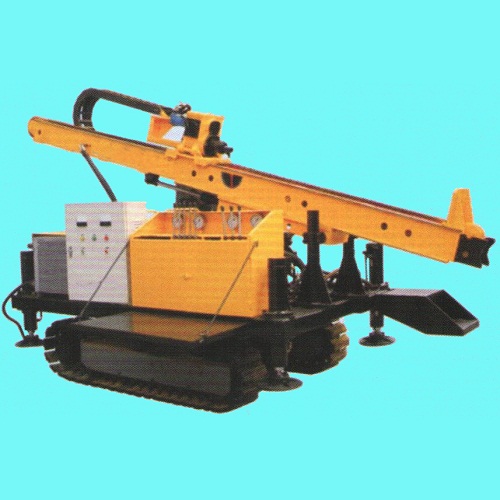

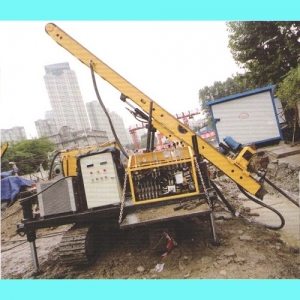

- crawler type jet grouting drilling rig
Model No.:
CXP-20XLPrice:
Pls contact us.Minimum Order:
1
Product Abstract:
Wanna get a FREE quote now? Just click the below FREE QUOTE button. The experts will get back to you as soon as possible.
- Product Description
- CXP-20XL Product Abstract:1. Machine type: crawler type jet grouting drilling rig2. Brand: iAEG3. Model: CXP-20XL4. Drilling diameter: φ90-φ150mm Drilling depth: 30-60mCXP-20XL Product Description:This jet grouting drilling rig is one kind of full hydraulic power head drilling rig. It can be applied in direction jet-grouting, pendulum jet-grouting, circultion jet-grouting work, and used for high pressure jet-grouting work in Quaternary Cover Area such as soil, sand, pebbly sand and so on. They also can be applied for anti-handling of infiltration and seepage of civil building construction, high building basement of soft foundation, and hydraulic engineering, such as roadbed, bridges, dam foundation and subway, etc.It has a variety of drilling methods, like: Dry-auger, DTH hammer impacting, ODEX tools casing following. etc. Therefore, it can be adaptable in different terrain, specially for complex drill work place, in order to effectively resolve the problem of difficulty of drilling in loose cover strata, gravel layers, broken rock strata, it should have a very widely usage.It can apply with singe pipe, duplex pipe and triplex pipe jet grouting tools.CXP-20XL Technical Parameters:
Borehole Depth (m) 30 - 60 Borehole Diameter (mm) φ90-φ150 Recommended Drill Rod (mm ) φ50 x3000?φ60x 3000; φ89 x 3000; Drill Head Rotary Speed ( FR/RE ) (rpm ) 0-17 (step-less ) ; 0-40 (step-less); 53 ; 70 ; 130 ; 170 Drill Head Lifting Speed (m/min ) 0-2.4; 4.3; 30 Drill Head Feeding Stroke (mm) 3500 Platform Turning Range (°) 360 Climb Ability (°) 20 Drill Head Max.Lifting Force (KN ) 45 Drill Head Max.Thrust Force (KN ) 30 Engine Power ( electromotor/diesel) (KW ) 22+4KW/71KW Drilling Rig Weight (kg) 3500 Overall Dimension ( Drill Reduce Type ) (mm) 4900 x 2000 x 1900 The company reserves the right to change the data of the machine without notice.A.E.G crawler type jet grouting drilling rig contains different 4 models as below: AXP-150D6, BXP-20A, BXP-150X and CXP-20XL.
