- full hydraulic top drive anchoring drilling rig
Model No.:
AMG-60Price:
Pls contact us.Minimum Order:
1
Product Abstract:
Wanna get a FREE quote now? Just click the below FREE QUOTE button. The experts will get back to you as soon as possible.
- Product Description

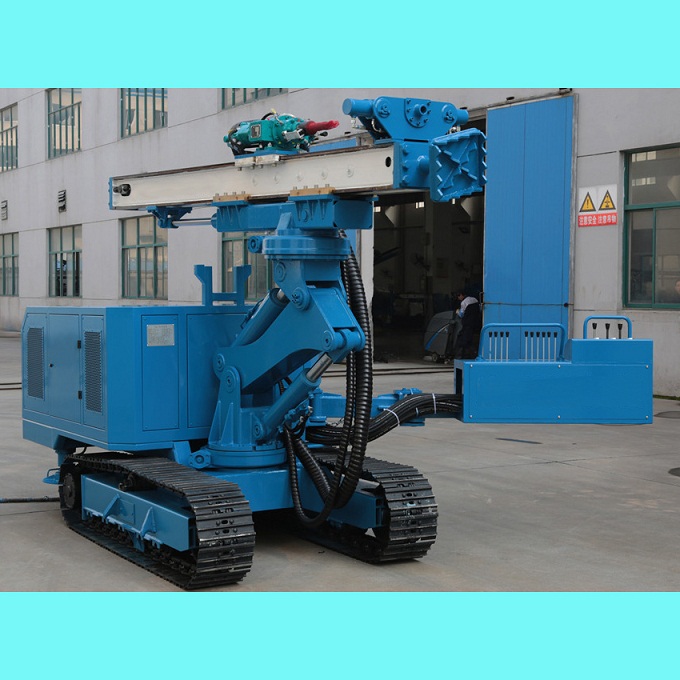

- AMG-60 Product Abstract:1. Machine type: full hydraulic top drifter anchoring drilling rig2. Brand: iAEG3. Model: AMG-604. Drilling diameter: φ30-φ73mm Drilling depth: 40-60mAMG-60 Product Introduce:AMG-60 is mainly for complex formation. The top drifter has high power -vibration, it is able to drill in hard rock without air compressor or DTH hammer.AMG-60 Main Features:1. With large impact energy in the top drive drilling head, it can achieve impact drilling without DTH hammer and air compressor.2. With the function of omnidirectional, multi-angle adjustment, it can meet many kinds of drilling angle requirements.3. It has smaller volume, you can use it in more places.4. The impact energy transmit on drilling tools from inside to outside, which reduce drill sticking, hole collapsing, drill bit being buried or other incidents, and make the construction safer and with lower cost.5. Suitable for various kinds of soft and hard soil condition, including sand layer, broken layer and other complicated layers.6. With high working efficiency. When fitted with relative drilling tools, it can do hole drilling and cement grouting in one time, reduce material consuming.7. This machine major in: caver control; micro agitation grouting; tunnel anchor; tunnel advance borehole inspection; advance grouting; building rectification; indoor grouting and other engineering.AMG-60 Construction Angles Dimensions:1. Left and right swings angle of big rotate platform

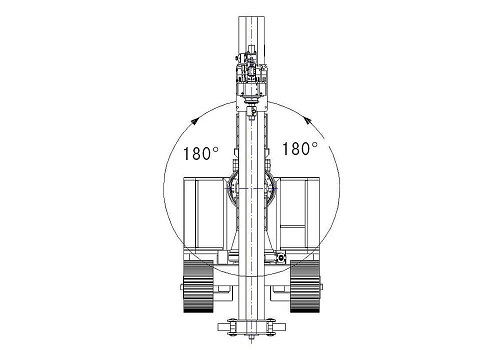

2. Up and down swings angle of lifting arm, height of lifting arm
3. Up and down swings angle of lifting tower

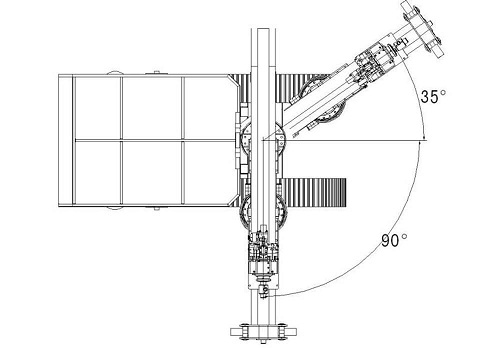

4. Left and right swings angle of face plate
AMG-60 Main Technical Specifications:Hole diameter(mm) φ30~φ73 Hole depth(m) 40-60 Hole angle(° ) -30~105 Rod diameter(mm) φ32 , φ50 , φ60 , φ73 Gripper diameter(mm) φ32-φ89 Rated output torque (N.m) 1740 Rated rotary speed(r/min) I: 0-28(adjustable), 92r/min II: 0-50 (adjustable), 184r/min Lifting speed of power head(m/min) 0-5 (adjustable) , 15 Feeding speed of power head(m/min) 0-8 (adjustable) , 25 Impact power of power head(N.m) 180 Impact frequency of power head(bmp) 3000 Rated lifting force (kN) 45 Rated feeding force (kN) 27 Feeding stroke (mm) 1800 Sliding stroke(mm) 900 Input power(Electromotor)(kW) 37 Transport Dimension(L* W*H) (mm) 3500*1400*2000 Vertical Working Dimension (L*W*H)(mm) 3500*1400*3500 Weight(kg) 4000 Climbing angle(°) 20 Working pressure (Mpa) 18 Walkingspeed(m/h) 1000 A.E.G A series full hydraulic top drive anchoring drilling rig has 7 models: AMG-60, AMG-80, AMG-160D, AMG-180D, AMG-180D1, AMG-200D and AMG-208.
