AMG-200D Product Abstract:

1. Machine type: full hydraulic top drive crawler type anchoring drilling rig

2. Brand: iAEG

3. Model: AMG-200D

4. Drilling diameter: φ100-φ250mm     Drilling depth: 180-220m

5. Contact us: Tel: +86-0510-85951355, Mobile/WeChat/WhatsApp: +86-15716179757, Email: sales@aeg-machinery.com



AMG-200D Product Description:

AMD-200D is mainly for complex formation. The top drifter has high power-vibration, so it is able to drill in hard rock without air compressor or DTH hammer.



AMG-200D Main Characters:

1. With large impact energy in the top drive drilling head, it can achieve impact drilling without DTH hammer and air compressor.

2. With the function of omnidirectional, multi-angle adjustment, it can meet many kinds of drilling angle requirements.

3. The impact energy transmit on drilling tools from inside to outside, which reduce drill sticking, hole collapsing, drill bit being buried or other incidents, and make the construction safer and with lower cost.

4. By large torque, high rotary speed, large impact energy, this machine is fit for wider soil layers, especially in sandy gravel layer, crushed rock layer, stone soil, sandy layer, and other easy collapsing layer that need impact drilling. It has high efficiency of drilling speed and high quality of hole. When the water content is too high in the layer to use the DTH hammer, the technology of this machine process is the unique choice.

5. With movable console, which is easy to operate and convenient for operators to view the drilling hole.

6. This machine is mainly applied in: foundation supporting, slope supporting, micro piling drilling, tunnel shied, and many kinds of hole guiding construction etc.



AMG-200D Product Advantages:

1. Top Drive Drilling Head (Domestic drilling head for alternative)—suitable for all kinds of soil condition

Max impact energy: 650NM

Max impact frequency: 2300 bpm

Max torque: 11000NM

Max rotary speed: 150 r/min

2. Fitted with imported hydraulic system—more stable system

3. Swiveling console—more convenient for operation, more flexible and safer

4. Omnidirectional variable angle mechanism—more flexible, suit for many kinds of projects

5. 250mm opening diameter clamp—suitable for big hole drilling construction

6.Engine to work/Diesel to walk

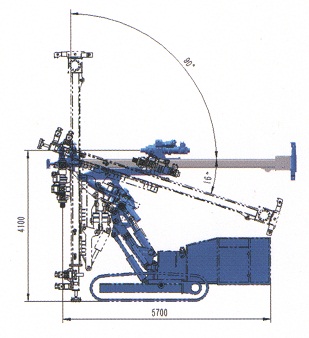

AMG-200D Construction Angles Demonstration:

1. left and right swings angle of Lifting arm

2. up and down swings angle of lifting arm, horizontal height of lifting arm

3. vice variable angle range

4. left and right swing angle of mast

5. up and down swing angle of lifting tower

6. adjustable angles of chassis



AMG-200D Main Technical Date Sheet:



Wanna Get a FREE Quote Now. Just Click Here. The experts will get back to you as soon as possible.



A.E.G A series full hydraulic top drive anchoring drilling rig has 7 models: AMG-60, AMG-80, AMG-160D, AMG-180D, AMG-180D1, AMG-200D and AMG-208.
