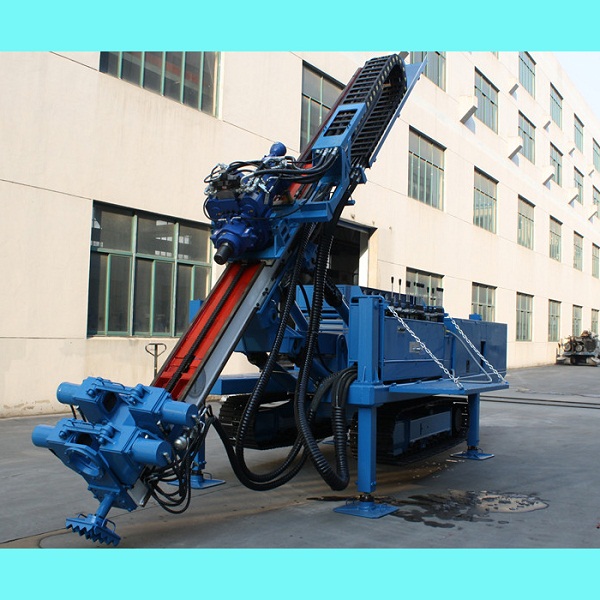

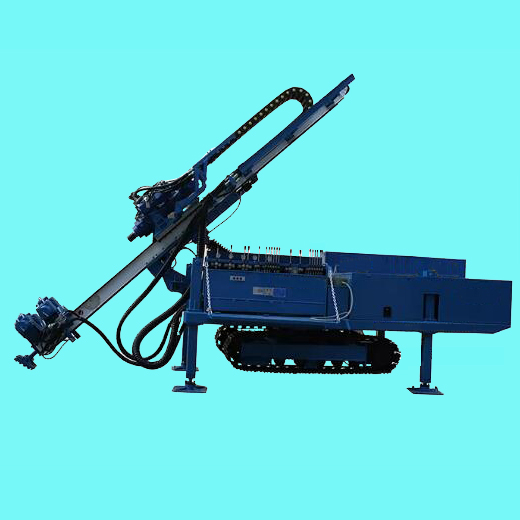

AMG-180D1 Product Abstract:

1. Machine type: full hydraulic top drifter anchoring drilling rig

2. Brand: iAEG

3. Model: AMG-180D1

4. Drilling diameter: φ150-φ250mm     Drilling depth: 150-180m

5. Contact us: Tel: +86-0510-85951355, Mobile/WeChat/WhatsApp: +86-15716179757, Email: sales@aeg-machinery.com



AMG-180D1 Product Description:

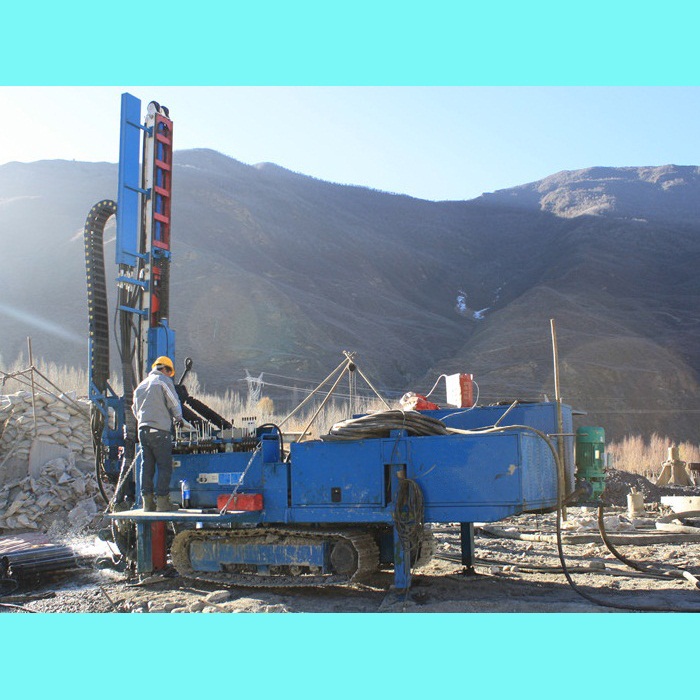

This top drive drilling rig is mainly for complex formation.

The top drifter has high power -vibration, it is able to drill in hard rock without air compressor or DTH hammer, within 30m depth.



AMG-180D1 Main Features:

1. The power head has high power vibration on the top drifter. It can achieve the effect of impact drilling without DTH hammer or air compressor with high efficiency and good effect.

2. By the transmission of impact power, it helps reducing inner accident such as jamming or tools stuck, effectively reduces working cost and risk.

3. Large torque, high rotary speed, high-power impact makes it fit for wide ranges of layers, especially for the sand gravel, scattered gravel, sand, rock , soil and other unstable layers that need impact drilling. It has high efficiency on penetration speed and hole making. While the local layer moisture content is too high to use DTH hammer, it is the unique choice to use this technology.

4. The machine major in: wall protection of foundation pit, protection of slope support, all kinds of guide-hole construction, such as various types of engineering tunnel pipe shed.



AMG-180D1 Product Advantages:

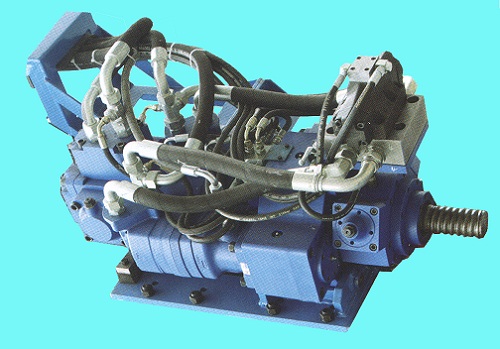

1. Top drive type power head

It is domestic power head. With large torque, high speed, high impact frequency and stable performance.

Impact power: 900N.m; Impact frequency: 1200 - 2100bmp; Max torque: 14000N.m

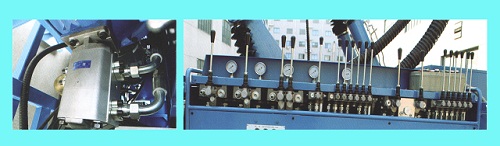

2. Stable hydraulic system

The control valves are imported with original package, by reliable quality, high performance, long performance life and good control ability.

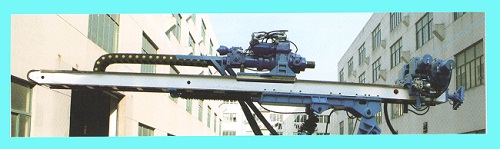

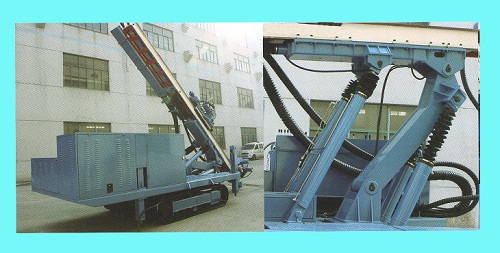

3. The mast sliding length can reach 4 meters long.

With longer stroke length, the working efficiency can be higher.

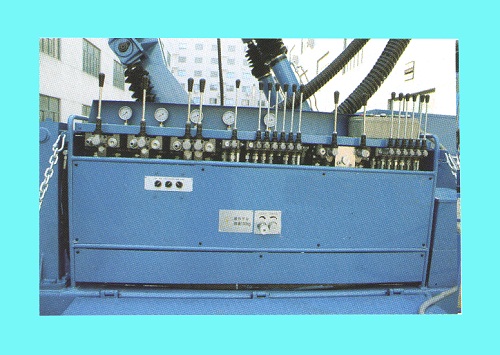

4. Easy operating

With imported high quality control valves, it's more flexible, reliable and convenient for maintenance.

5. The structure design is more stable.

It is steady while operating, and suitable for tunnel construction and can reduce the wastage of drilling tools.

6. More wider platform

With more wider platform, it makes the construction environment better.

7. It is equipped with large diameter of 260mm clamping device, which is suitable for casing drilling construction.

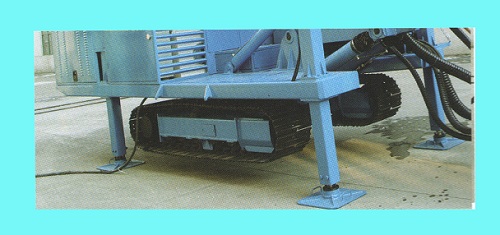

8. Crawler chassis unit has two speed control, users can select suitable speed according to actual need.



AMG-180D1 Main Technical Parameters:



Wanna Get a FREE Quote Now. Just Click Here. The experts will get back to you as soon as possible.



A.E.G A series full hydraulic top drive anchoring drilling rig has 7 models: AMG-60, AMG-80, AMG-160D, AMG-180D, AMG-180D1, AMG-200D and AMG-208.
