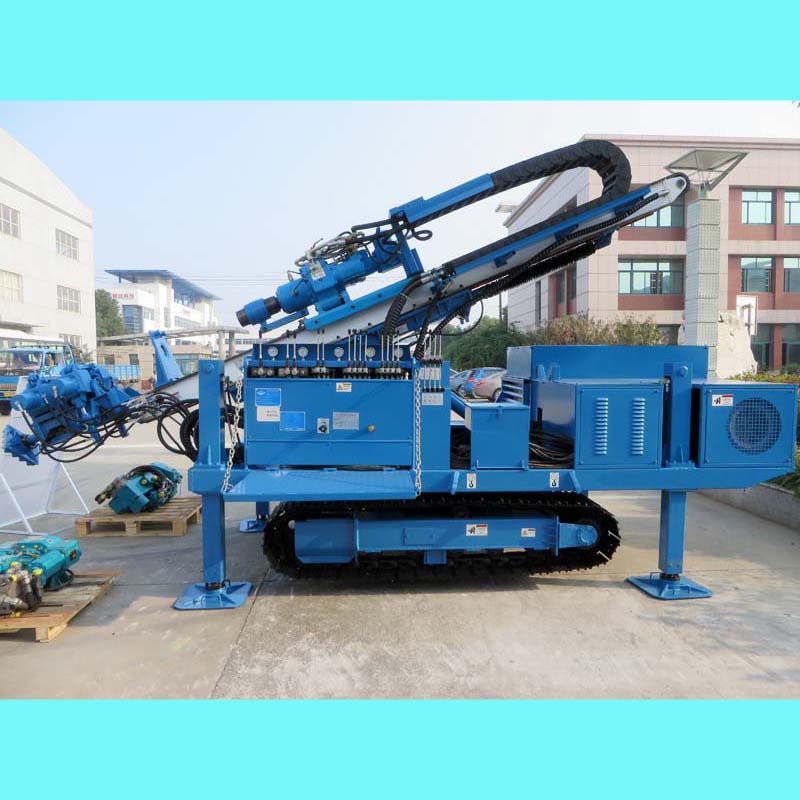

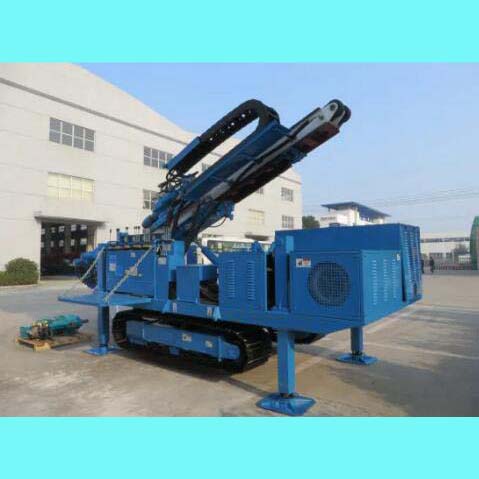

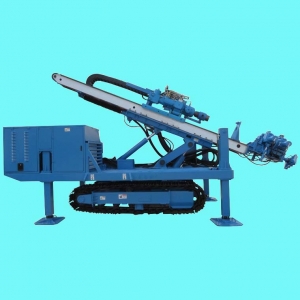

- full hydraulic top drive anchoring drilling rig
Model No.:
BMG-C150Price:
Pls contact us.Minimum Order:
1
Product Abstract:
Wanna get a FREE quote now? Just click the below FREE QUOTE button. The experts will get back to you as soon as possible.
- Product Description
- BMG-C150 Product Abstract:1. Machine type: full hydraulic top drive crawler type anchoring drilling rig2. Brand: iAEG3. Model: BMG-C1504. Drilling diameter: φ150-φ250mm Drilling depth: 80-100mBMG-C150 Product Introduce and Main Charaters:1. It has adopted top hydraulic rotary power head impact which is Taiwan imported, multi-angle drilling, and excellent performance.2. The drilling rig can be applied for different technique methods and a variety of ground conditions, especially in the difficult work condition, such as the imcompact ground area, the gravel place, and the fragment rock stratum, this drilling can always provide the operator excellent solutions.3. It has no dull pollution and no need air-compressor when drill the incompact ground area, the gravel place and fragment rock stratum.4. When meeting those fragile holes such as sand gravel layer, gravel layer, sand stone soil, sand hole, the top drive drill equipment has a very high penetration rate and drilling efficiency.5. In complex condition, it can use double tube rotating drilling, in order to make hole stable and easy to slip casting.BMG-C150 Applications:1. Urban subway, high-rise buildings, airport, geothermal hole, foundation anchoring.2. Jet grouting and dewatering.3. The blast hole, the anti-floating anchoring hole.4. It can be also used for pipe shed engineering.BMG-C150 Main Technical Specifications:
Hole Diameter (mm) φ150?φ250 Hole depth (m) 80-100 Angle(°) 0~110 Rod diamter (mm) φ76, φ133, φ146 Rotary Torque(N.m) 11000 Rotary Speed(P/R,r/min) 12 - 138 Impact torque (N.m) 600 Impact infrequnce(min-1) 1500 - 2300 Pulling capacity(KN) 62 Feeding pacacity(KN) 30 Pulling speed(m/min) 1.4, 7, 18, 26 Feeding speed(m/min) 0-2.8, 14, 36, 51 Stroke(m/min) 2600 Sliding stroke (mm) 900 Max Mast level height to ground (m) 3.6 Power(KW) 93kw (cummins) Weight (kg) 6800 Climb angle 25° Woking overall (L×W×H,mm) 4600×2500×5600 Transportaion overall (L×W×Hmm) 5400×2100×2000 A.E.G B series full hydraulic top drive crawler type anchoring drilling rig includes 4 models: BMG-C150, BMG-C160, BMG-C180 and BMG-C200.
