- full hydraulic top drive anchoring drilling rig
Model No.:
BMG-C180Price:
Pls contact us.Minimum Order:
1
Product Abstract:
Wanna get a FREE quote now? Just click the below FREE QUOTE button. The experts will get back to you as soon as possible.
- Product Description

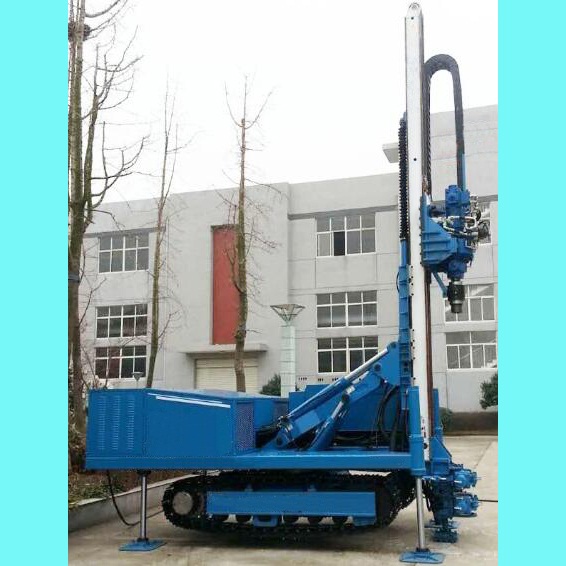

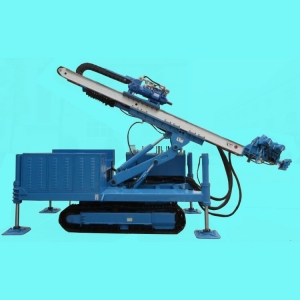

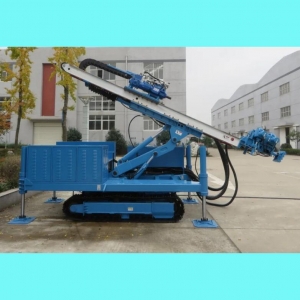

- BMG-C180 Product Abstract:1. Machine type: full hydraulic top drive crawler type anchoring drilling rig2. Brand: iAEG3. Model: BMG-C1804. Drilling diameter: φ150-φ250mm Drilling depth: 180-150mBMG-C180 Product Introduce:1. BMG-C180 is a kind of full hydraulic power head anchor crawler drilling rig . Its drilling depth is 130-170 m, and drilling diameter 150-250 mm.2. BMG-C180 is applicable to a wide-range of strata with big torque, high rotary speed, and big power. When meeting those fragile holes such as sand gravel layer, gravel layer, sand stone soil, sand hole, the top drive drill equipment has a very high penetration rate and drilling efficiency. Especially when the moisture content of local layer is too high to use DTH hammer when work, this top head drive drill rig is the only choice.3. This top head drive drill rig adopts variable hydraulic system and can with big power without DTH hammer or air compressor. The drilling tools from the outer to the inner and all involved in the transmission of the impact power, it is not easy to happen the hole accidents such as drill sticking.4.This top drive drill equipment is applicable to anchor hole, such as urban foundation pit supporting . And is mainly applied to construction engineering supporting, slope supporting,all kinds of guide hole, tunnel and pipe shed engineering, etc.BMG-C180 Main Technical Parameters:Drilling Diameter (mm)φ150?φ250Drilling Depth (m)180~150Hole Angle?°?0-110Drill rod diameter (mm)76/136?89/146Output torque of power head?N.m?7200/10200?max?Output rotary speed of power head?FR/RE?r/min?18-150Impact power(J)500Impact frequency?min-1?1500~2200Lifting force?KN?75Feeding force?KN?40Lifting speed?m/min?23.6?7.4?0-2.2Feeding speed?m/min?46.5?14.6?0-4.3Feeding stroke?mm?3400Stroke of slide frame?mm?1500Horizontal max lifting height?m?3.3Input power?kW?55+18.5+3?electric?Weight (kg)7000Gradeability25°Working dimension(L×W×H?mm)4650×2700×6500Transport dimension (L×W×H?mm)5400×2100×2050A.E.G B series full hydraulic top drive crawler type anchoring drilling rig includes 4 models: BMG-C150, BMG-C160, BMG-C180 and BMG-C200.
