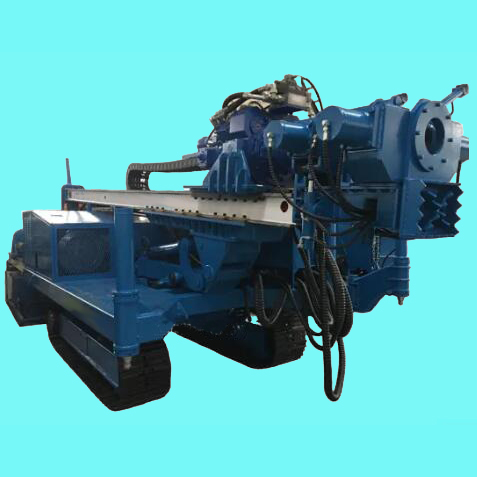

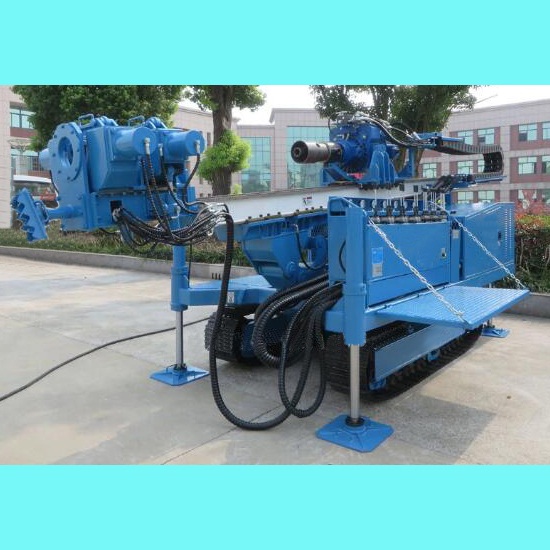

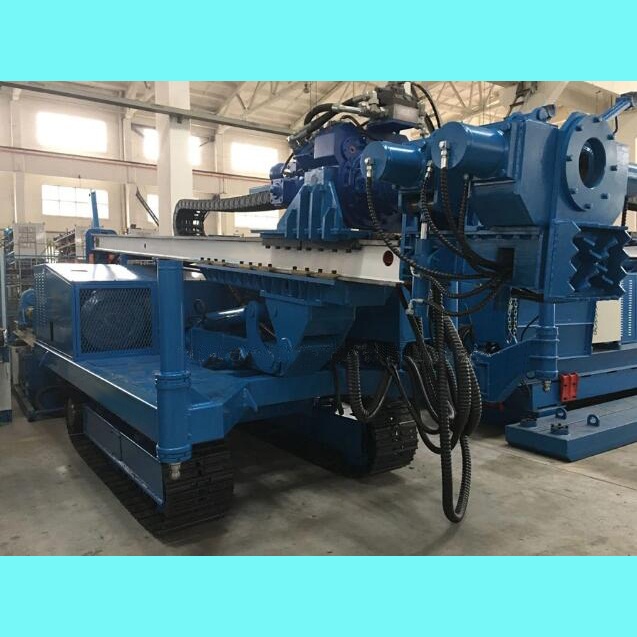

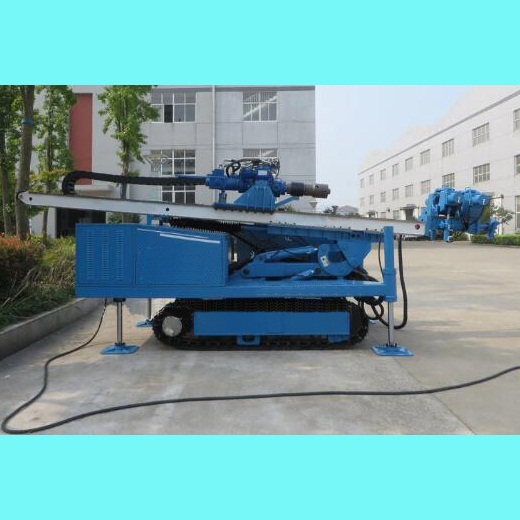

- full hydraulic top drive anchoring drilling rig
Model No.:
BMG-C200Price:
Pls contact us.Minimum Order:
1
Product Abstract:
Wanna get a FREE quote now? Just click the below FREE QUOTE button. The experts will get back to you as soon as possible.
- Product Description
- BMG-C200 Product Abstract:1. Machine type: full hydraulic top drive crawler type anchoring drilling rig2. Brand: iAEG3. Model: BMG-C2004. Drilling diameter: φ150-φ250mm Drilling depth: 220-180mBMG-C200 Product Introduce:1. BMG-C200 is applicable to a wide-range of strata with big torque, high rotary speed, and big power. When meeting those fragile holes such as sand gravel layer, gravel layer, sand stone soil, sand hole, the top drive drill equipment has a very high penetration rate and drilling efficiency. Especially when the moisture content of local layer is too high to use DTH hammer when work, this top head drive drill rig is the only choice.2. This top head drive drill rig adopts variable hydraulic system and can with big power without DTH hammer or air compressor. The drilling tools from the outer to the inner and all involved in the transmission of the impact power, it is not easy to happen the hole accidents such as drill sticking.3. This top drive drill equipment is applicable to anchor hole, such as urban foundation pit supporting . And is mainly applied to construction engineering supporting, slope supporting, kinds of guide hole, tunnel and pipe shed engineering, etc.BMG-C200 Main Technical Parameters:Hole dia. (mm)φ150 - φ250Hole depth (m)220-180Hole angle (°)0-110Drill rod dia. (mm)inner: φ89-φ114 outer: φ133-φ219Output torque (N·m)14000Rated speed (r/min, clockwise and reverse turning)12-140Impact power (N.M)900Impact frequency (min-1)1200-2100Lifting force (kN)78Feeding force (kN)40Lifting speed of power head (m/min)15 0-2.8Feeding speed of power head (m/min)30 0-5.5Feeding stroke (mm)3800Slide stroke (mm)1500Maximum lifting height level (m)3.6Imput power
(electromotor) (kW) 75+37+4(diesel engine) (kW) 125(cummins)Weight (kg)8800Climbing angle25°Machine size in vertical work condition (L*W*H, mm)5000x2400x6900Transportation condition of main host (L*W*H, mm)6900x2180x2600A.E.G B series full hydraulic top drive crawler type anchoring drilling rig includes 4 models: BMG-C150, BMG-C160, BMG-C180 and BMG-C200.
