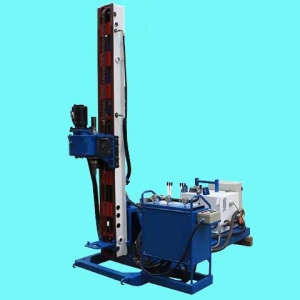

- minisize jet grouting drill rig
Model No.:
AXP-20Price:
Pls contact us.Minimum Order:
1
Product Abstract:
Wanna get a FREE quote now? Just click the below FREE QUOTE button. The experts will get back to you as soon as possible.
- Product Description

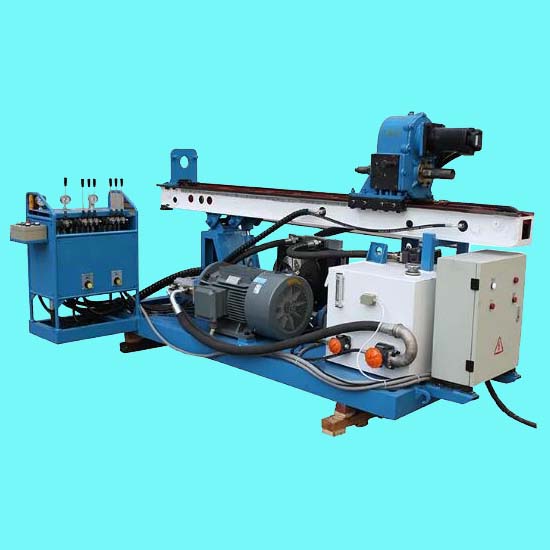

- AXP-20 Product Abstract:1. Machine type: minisize jet grouting drilling rig2. Brand: iAEG3. Model: AXP-204. Jet grouting: Drilling diameter: Single: 400-600mm Double: 600-1200mm Triple: 800-1600mm Drilling depth: 20-50mAnchoring: Drilling diameter: φ90-φ168mm Drilling depth: 30-60mAXP-20 Product Introduce:This jet grouting drilling rig is mainly for foundation engineering, soft soil reinforcement, jet grouting.AXP-20 Main Characters:1. It can do jet-grouting processing and anchoring processing construction.2. Relative accessories: Clients can select different module function in accordance with different construction requirements. You can choose to purchase all relative accessories at one time, you can also select suitable accessories according to construction situation, such as single, double and triple module, swing jet and fixing jet module, anchoring module.3. Convenient for maintenance and operation: full hydraulic technology, continuously variable speed module in jet-grouting lifting and anchor drilling.4. Complete set of drilling tools: Self-design a large number of jet-grouting drills for various marketing demands, such as drill of single, double, triple, swing jet and fixing jet.5. Convenient combinations: Clients can choose different combinations to get a better cost performance of our equipments.AXP-20 Product Technical Data Sheet:
Specifications AXP-20 Jet Grouting:Hole diameter(mm) Single:400~600,
Double:600~1200,
Triple:800~1600Hole depth(m) 20~50 Anchor?Hole diameter(mm) φ90~φ168 Hole depth(m) 30-60 Anchor & Grout:Hole angle(°) 0~90 Max torque (N.m) 2500 Rotary speed (r/min) 0~6, 0~20(adjustable),
6, 20, 40, 50, 120, 150Lifting force (kN) 21 Feeding force (kN) 15 Lifting speed (m/min) 0~1.1 (adjustable) Plus-pressure speed (m/min) 1.5, 9 Power head feeding stroke (mm) 1800 Voltage (V) 380 Electric engine power (kW) 18.5+1.5 Working Dimension(L*W*H)(mm) 3045*1370*3060 Transport Dimension(L*W*H)(mm) 3045*930*1500 Weight(kg) About 1400 installation type integral type A.E.G minisize type jet grouting drilling rig includes the following 5 different models: AXP-20, AXP-25, BXP-20A, BXP-25 and CXP-20X.
