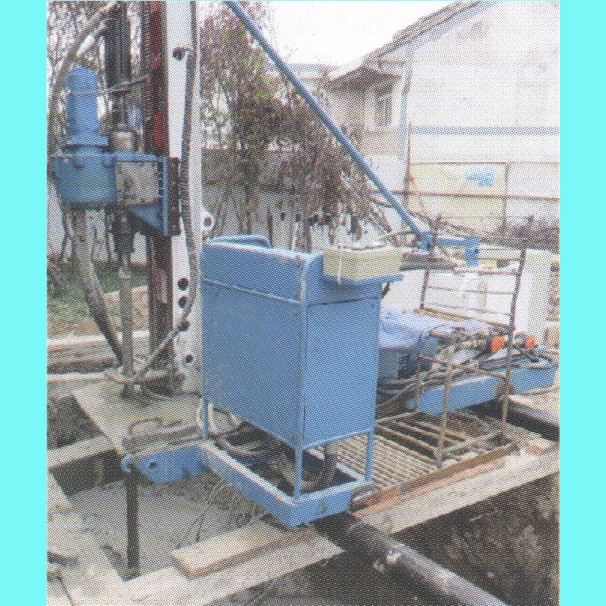

- minisize jet grouting drill rig
Model No.:
BXP-20APrice:
Pls contact us.Minimum Order:
1
Product Abstract:
Wanna get a FREE quote now? Just click the below FREE QUOTE button. The experts will get back to you as soon as possible.
- Product Description
- BXP-20A Product Abstract:1. Machine type: minisize jet grouting drilling rig (enhanced type)2. Brand: iAEG3. Model: BXP-20A4. Jet grouting: Drilling diameter: Single: 400-600mm Double: 600-1200mm Triple: 800-1600mm Drilling depth: 30-60mAnchoring: Drilling diameter: φ90-φ185mm Drilling depth: 50-80mBXP-20A Product Description:1. It is applied to soft ground stabilization, seepage control of basement of high-rise buildings, renovation of big river and levee, reinforcement of railway, highway and pier, etc.2. This jet grout drill rig can work in a small space. It is very convenient to move and displace.3. Applicable for wide range of processing except jet-grouting processing requirements, this machine may also apply in anchoring processing construction.4. It can apply singe pipe, duplex pipe, triple pipe tools and so on. Pendulum jetting device can be added to achieve the pendulum jet-grouting function.BXP-20A Main Technical Parameters:Jet groutingStake diameter (mm)Single: 400 - 600Double: 600 - 1200Triple: 800 - 1600Hole depth (m)30 - 60AnchoringHole diameter (mm)?90 - ?185Hole depth (mm)50-80Hole angle0-90°Output rotary speed of power head0-6, 0-20 (without adjustable level) 5,25,40,110,150r/minOutput torque of power head3600N.mUnit head lifting force (kN)60Unit head plus-pressure (kN)30Lifting speed (m/min)0-0.7(without adjustable level), 0.7, 6Plus-pressure speed (m/min)0-1.4(without adjustable level), 11, 12.4Stroke of power head (mm)1800Motor power (kW)22+1.5Appearance of construction status(length × width × height mm)3045×1370×3210Appearance of transportation status(length × width × height mm)3160×930×1410Weight (kg)about 1800A.E.G minisize type jet grouting drilling rig includes the following 5 different models: AXP-20, AXP-25, BXP-20A, BXP-25 and CXP-20X.
