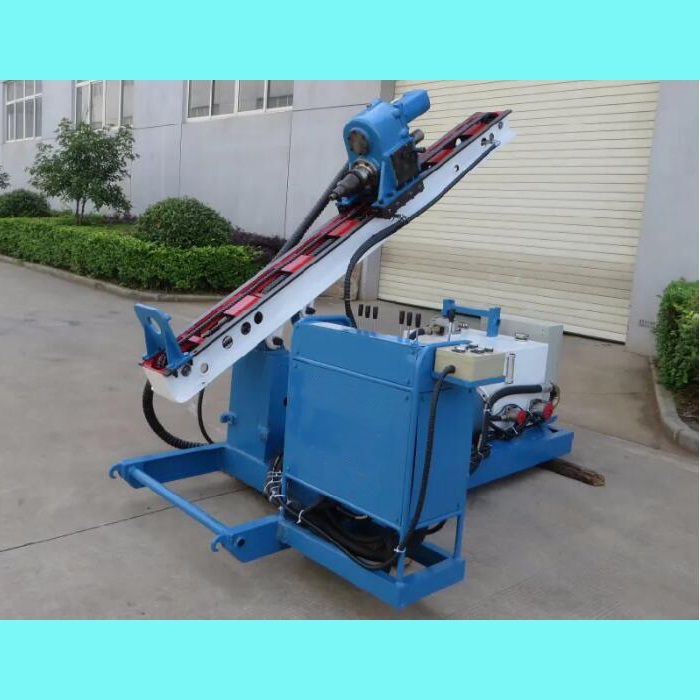

- minisize jet grouting drill rig
Model No.:
BXP-25Price:
Pls contact us.Minimum Order:
1
Product Abstract:
Wanna get a FREE quote now? Just click the below FREE QUOTE button. The experts will get back to you as soon as possible.
- Product Description
- BXP-25 Product Abstract:1. Machine type: minisize jet grouting drilling rig (enhanced type)2. Brand: iAEG3. Model: BXP-254. Drilling diameter: Single: 400-600mm Double: 600-1200mm Triple: 800-1600mm Drilling depth: 30-50mBXP-25 Product Description:1. It is applied to soft ground stabilization, seepage control of basement of high-rise buildings, renovation of big river and levee, reinforcement of railway, highway and pier, etc.2. This jet grout drill rig can work in a small space. It is very convenient to move and displace.3. Applicable for wide range of processing except jet-grouting processing requirements, this machine may also apply in anchoring processing construction.4. It can apply singe pipe, duplex pipe, triple pipe tools and so on. Pendulum jetting device can be added to achieve the pendulum jet-grouting function.BXP-25 Main Technical Parameters:Jet grouting Dia (mm)Single: 400-600 Double: 600-1200 Triple: 800-1600Hole depth ( m)30-50Hole angle (°)0-90°Output rotary speed of power head (r/min)0-12,0-35(adjustable), 12, 38, 50, 110, 145Output torque of power head (N.m)3500Unit head lifting force( kN)25Unit head feeding force (kN)17Lifting speed (m/min)0-2.6 (adjustable), 2.6, 15, 17.5Feeding speed (m/min)0-3.9 (adjustable), 3.9, 20.8, 24.7Stroke of power head(mm)1800 (1500, 2300 optional)Motor power(kW)30+1.5+0.5(heat sink)Construction status(length×width×height, mm)3000×1500×3050Transportation status(length×width×height, mm)3000×1500×1500Weight (kg)1300A.E.G minisize type jet grouting drilling rig includes the following 5 different models: AXP-20, AXP-25, BXP-20A, BXP-25 and CXP-20X.
