· Shotcreting for tunnels, hydro-power engineering, mines, underground engineering, civil engineering and slope stabilization, etc.

· Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface.

· Refractory spraying and repair for industrial kilns or kilns’ inner liner.

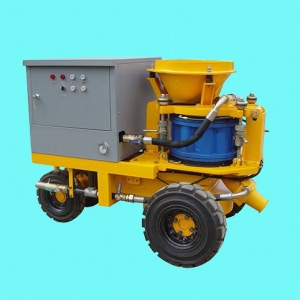

ASM-9M Dry type shotcrete machine Features:

· Capacity-variable System

  The output can be adjustable from 3 cubic meters/hour to 9 cubic meters/hour. It can be used for the different working condition.

· Auto-lubricating System

   Enhance the sealing of air-pipe system; lengthen the use life of the rubber sealing plate.

· Time Hour

   Indicate the accumulated work time to ensure that the reliable maintenance plan is made.

· Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to  reduce clearance and maintenance period.

· Thin follow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.

· Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dust leak and  prolong consumption parts life.

· Particularly used for dry, damp mix and steel (polymer) fibre reinforced shotcrete.

· Complies with the essential health and safety requirements of the Directive 2006/42/EC



ASM-9M Dry type shotcrete machine Advantages:

· High-accuracy Gearbox, high clean degree inside;

· High wear resistance and longer use life consumable parts;

· Military standard solid wheels for different construction site;

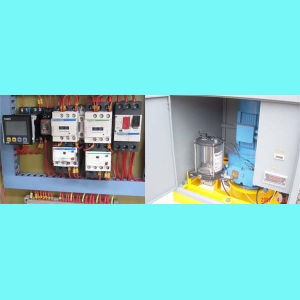

· IP55 100% new electrical motor, standard Schneider electrical elements and electrical control box strictly as the CE safety standard;

· National standard bearing, valve and screw etc.;

· All the casting units manufactured as our special design to ensure the enough strength and some key parts are the welded parts not the casting;

· The sheet metal parts made of the thicker steel plate to have a stronger quality, such as the hopper and electrical control box;

· Serious handle for details, such as, protector for pressure gauge, special part for dust escaping down to the ground;

· Painted after sandblasting for a pretty appearance.



ASM-9M Technical Data Sheet



A.E.G Shotcrete Machine Introduce

Shotcrete process is to use compressed air to convey the pre-dampened mix through delivery hose to the nozzle to project the material onto the sprayed surface under high velocity, and then to form concrete support layer after the projected material coagulates and hardens. With simple technology, special effect, economy cost, flexibility and high construction efficiency, shotcrete technology has widely been applying in construction, railway and super highway engineering, underground engineering, tunneling, mining operations, hydropower projects and slope stabilization, etc. and showing prosperous future.



A.E.G Shotcrete machine has 3 different types: dry type, wet type, dry and wet type.
