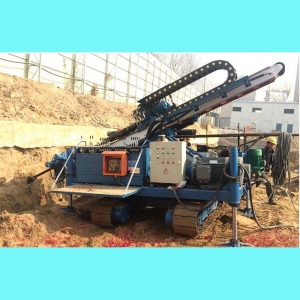

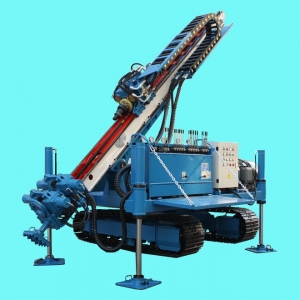

- full hydraulic crawler type anchoring drill rig
Model No.:
AMG-135DPrice:
pls contact us.Minimum Order:
1
Product Abstract:
Wanna get a FREE quote now? Just click the below FREE QUOTE button. The experts will get back to you as soon as possible.
- Product Description

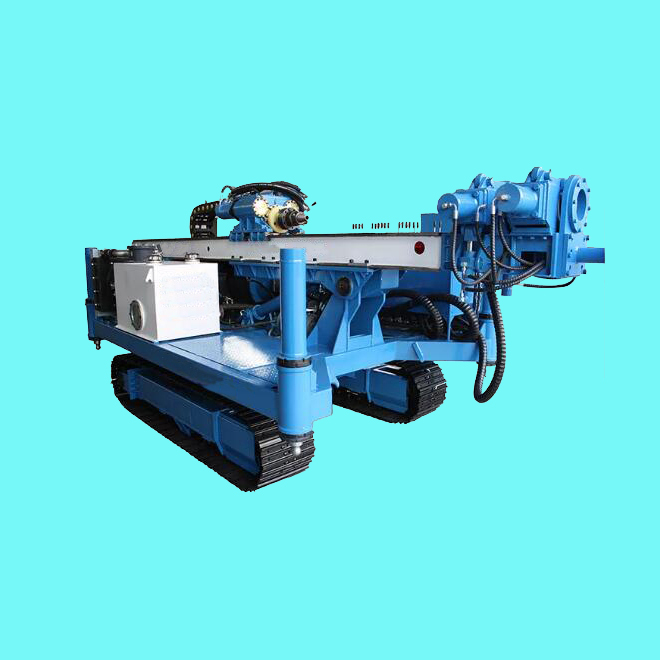

- AMG-135D crawler type anchoring drilling rig Product Abstract:1. Machine type: full hydraulic crawler type deep foundation anchoring drilling rig2. Brand: iAEG3. Model: AMG-135D4. Drilling diameter: φ150-φ250mm Drilling depth: 100-140mAMG-135D Product Descriptions and Applicatioins:AMG-135D full hydraulic crawler mounted deep foundation anchoring drilling rig is mainly for anchoring, jet-grouting and dewatering.It is an all-hydraulic operated drill in accordance with the construction requirements of subway, high-rise building, airport and the other deep foundation pit.It is widely used in slope supporting in railway, tunnel, hydropower station, and other remote areas.By changing the module of core tube, it can do jet grouting (soft soil reinforcement, foundation improvement) as well.Based on different stratum, we can adjust torque and rotary speed of drilling rig to increase drilling rig’s adaptability.At the same time, we can adjust torque and rotary speed based on client’s request.With the crawler, it has the following technical features: fast mobility, accurate location, time-saving, good reliability and stability.It can reduce labor intensity and increase efficiency after equipping the clamping and breaking device.AMG-135D Construction Technology:1. Anchor2. Jet grouting3. Mud positive circulating drill4. DTH hammer Impact Drill by air5. DTH Hammer Impact Drill by water.AMG-135D Product Technial Data Sheet:
Hole diameter(mm) φ150~φ250 Hole depth(m) 100~140 Rod diameter(mm) φ73,φ89,φ102,φ114 Hole angle(°) 0~90 Rotary speed(r/min) 10,20,25,40,50,60,70,100,120,140 Max torque(N.m) 6800 Power head feeding stroke(mm) 3400 Mast sliding frame stroke (mm) 900 Lifting force (kN) 65 Lifting speed (m/min) 0~1.4(adjustable)/7/18/26 Feeding force (kN) 33 Feeding speed (m/min) 0~1.8(adjustable)/14/36/51 Diesel or Electric engine is alternative
Electric engine
Diesel engine55+18.5+2.2
82Dimension(L*W*H)(mm) 5400*2100*2000 Weight(kg) 6000 Our A series full hydraulic crawler type anchoring drilling rig has the following 5 modes: AMG-135D, AMG-150D, AMG-150D2, AMG-135H and AMG-150H.
