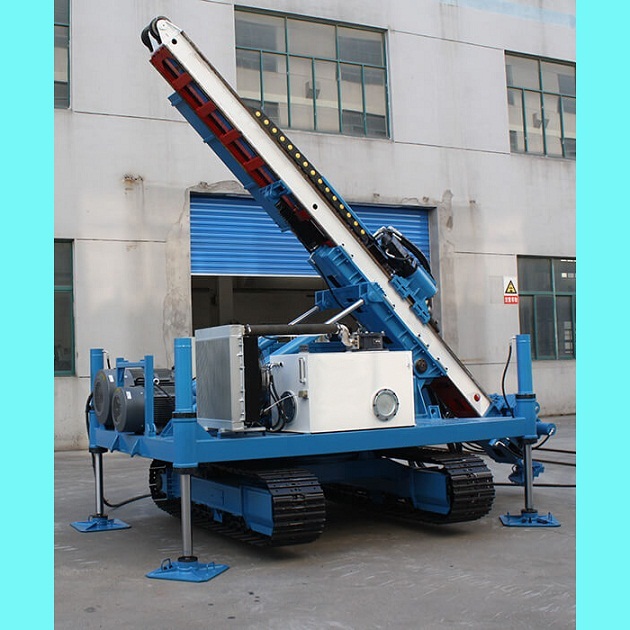

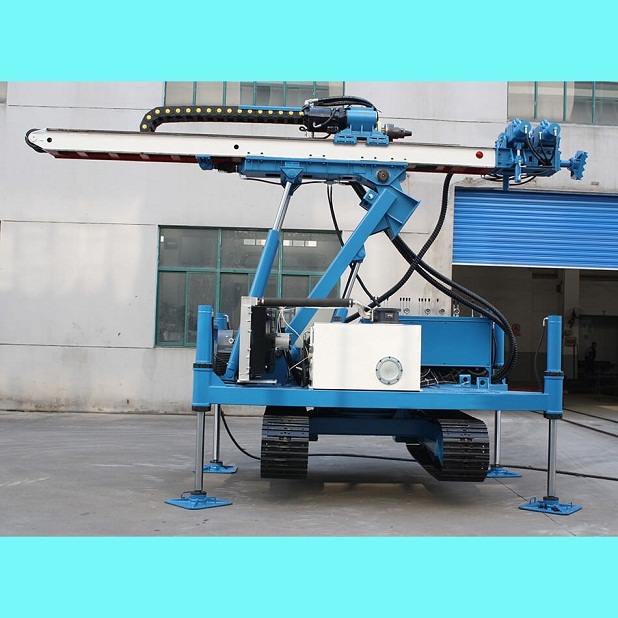

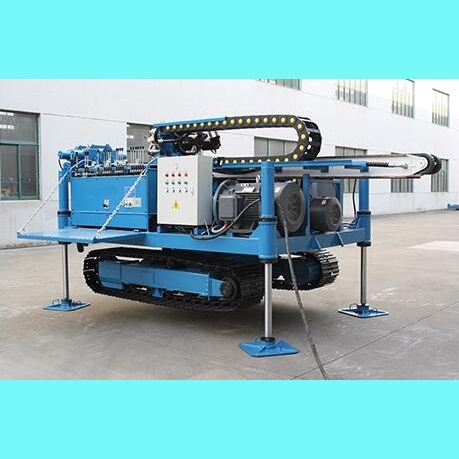

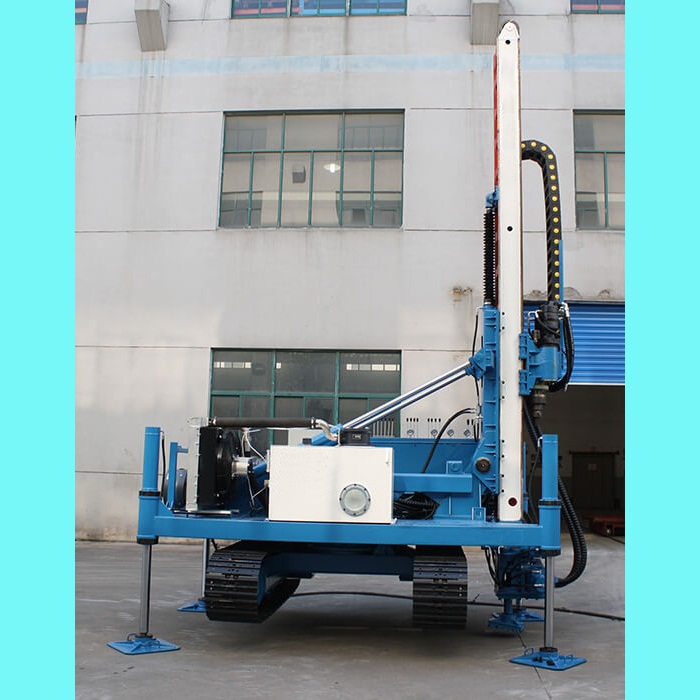

- full hydraulic crawler type anchoring drill rig
Model No.:
AMG-150D2Price:
Pls contact us.Minimum Order:
1
Product Abstract:
Wanna get a FREE quote now? Just click the below FREE QUOTE button. The experts will get back to you as soon as possible.
- Product Description
- AMG-150D2 Product Abstract:1. Machine type: full hydraulic high lifting crawler type anchoring drill rig2. Brand: iAEG3. Model: AMG-150D24. Drilling diameter: φ150-φ250mm Drilling depth: 130-170mAMG-150D2 Product Description:This high-lifting crawler anchor drilling rig is mainly for anchoring, jet-grouting and dewatering.It is all-hydraulic operated drill in accordance with the construct requirements of subway, high-rise building, airport and the other deep foundation pit.It is widely used in slope supporting in railway, tunnel, hydropower station, and other remote areas.By changing the module of core tube, it can do jet grouting (soft soil reinforcement, foundation improvement) as well.AMG-150D2 Construction Characters:1. Anchor.It can be used in anchor drilling when the main shaft connects with drill rod/drill pipe, casing, also with casing-followed drill tools.2. Jet-grouting.It can be used with single-pipe, double-pipe and triple-pipe jet-grouting etc. It can meet the following construction technique after equipped different module.3. Dewatering for foundation pit4. Micro-pile5. Geothermal hole (water well) engineeringBased on different stratum, we can adjust torque and rotary speed of drilling rig to increase drilling rigs adaptability.At the same time, we can adjust torque and rotary speed based on client’s request.With the crawler, it has the following technical features: fast mobility, accurate location, time-saving, good reliability and stability.It can reduce labor intensity and increase efficiency after equipping the clamping and breaking device.Special Function - High Lifting: It has the function of high lifting, which makes it possible to achieve horizontal drilling construction of 3.5 meters high.AMG-150D2 Construction Technology:1. Anchor2. Jet-grouting3. Mud Positive Circulating Drill4. DTH hammer Impact Drill by Air5. DTH Hammer Impact Drill by Water6. Reverse Circulation Drilling.AMG-150D2 Product Technical Data Sheet:Hole diameter (mm)φ150~φ250Hole depth (m)130~170Rod diameter (mm)φ73, φ89, φ102, φ114Hole angle (°)-40~90Rotary speed (r/min)10, 20, 30, 35, 40, 60, 70, 85, 130, 170Max torque (N.m)7500Power head feeding stroke (mm)3400Mast sliding frame stroke (mm)900Horizontal construction height (m)3.2Lifting force (kN)70Lifting speed (m/min)0~5(adjustable)/7/23/30Feeding force (kN)36Feeding speed d (m/min)0~10(adjustable)/14/46/59Diesel or Electric engine is alternative
Electric engine Power (kW)
Diesel engine Power (kW)55+18.5
92Dimension (L*W*H)(mm)5400*2100*2000Weight (kg)6500Our A series full hydraulic crawler type anchoring drilling rig has the following 5 modes: AMG-135D, AMG-150D, AMG-150D2, AMG-135H, AMG-150H.
