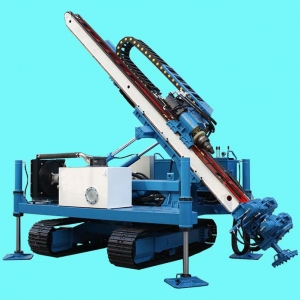

- full hydraulic crawler type anchoring drill rig
Model No.:
AMG-150DPrice:
pls contact us.Minimum Order:
1
Product Abstract:
Wanna get a FREE quote now? Just click the below FREE QUOTE button. The experts will get back to you as soon as possible.
- Product Description

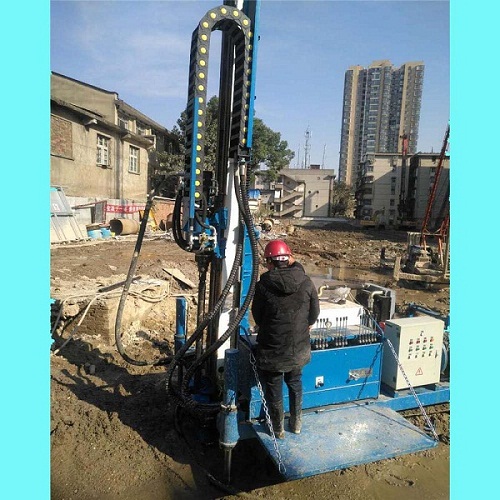

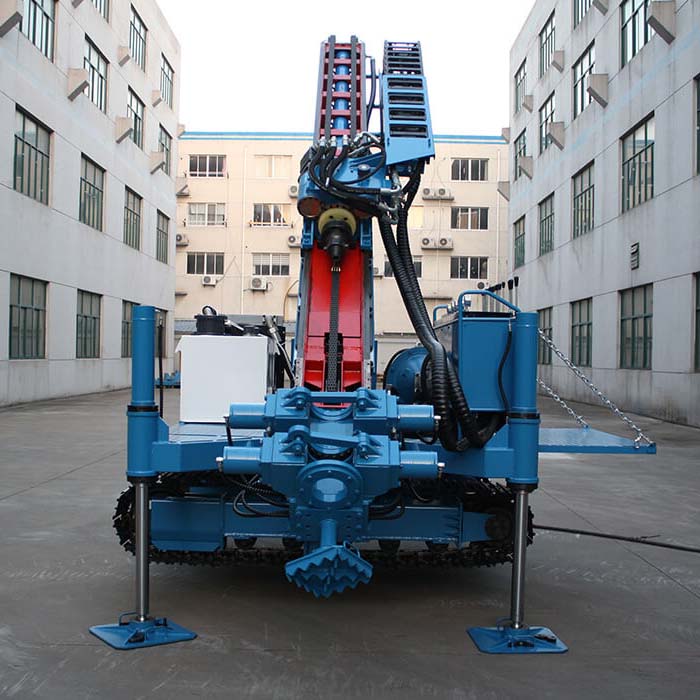

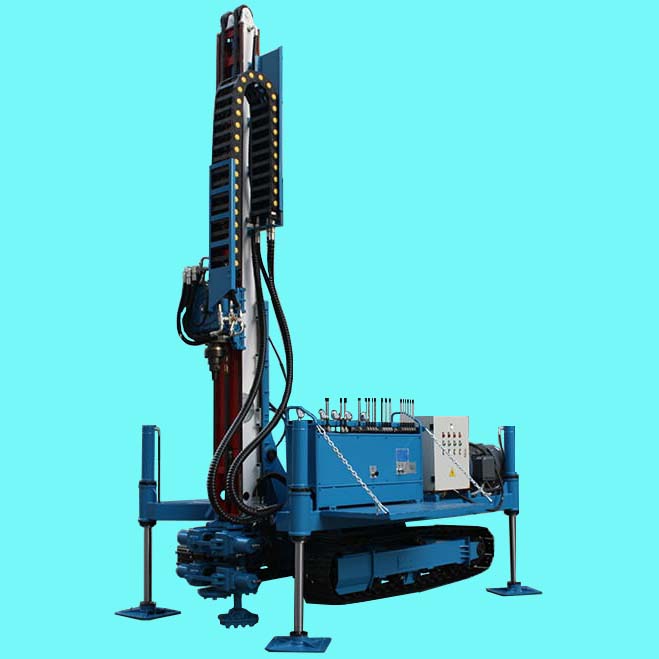

- AMG-150D Product Abstract:1. Machine type: full hydraulic deep foundation crawler type anchoring drilling rig2. Brand: iAEG3. Model: AMG-150D4. Drilling diameter: φ150-φ250mm Drilling depth: 130-170mAMG-150D Product Description:AMG-150D deep foundation crawler drilling rig is a high efficiency drilling rig mainly for anchoring, jet-grouting and dewatering, which is well designed and produced by our company. This series of drilling rig is all-hydraulic operated drill in accordance with the construct requirements of subway, high-rise building, airport and the other deep foundation pit.AMG-150D Main Characters:1.The maximum speed is up to 170r/min; and comparing to AMG-135D, the speed has increased by 20%.When construct on soil, using twist drill can make the drilling efficiency more impressive.2.Energy-saving, high efficiency: Although the power remains the same, the work efficiency is highly improved.3.Compared to AMG-135D, the speed increases, and the torque has increased by 10% while the maximum rotary torque can achieve 7500NM.4.With the new hydraulic system, the structure is simpler, the layout is more reasonable and the operation is more humanized.5.Compared to AMG-135D drilling rig, the drilling efficiency enhances by 20% or more.Based on different stratum, we can adjust torque and rotary speed of drilling rig to increase drilling rig's adaptability.At the same time, we can adjust torque and rotary speed according client's request.With the crawler, it has the following technical features: fast mobility, accurate location, time- saving, good reliability and stability.It can also reduce labor intensity and increase efficiency after equipping the clamping and breaking device.AMG-150D Construction Technology:1.Anchor;2.Jet-grouting;3.Mud Positive Circulating Drill;4.DTH hammer Impact Drill by Air;5.DTH hammer Impact Drill by Water.AMG-150D Technical Data Sheet:
Hole diameter(mm) φ150~φ250 Hole depth(m) 130~170 Rod diameter(mm) φ73,φ89,φ102,φ114 Hole angle(°) 0~90 Rotary speed(r/min) 10,20,30,35,40,60,70,85,130,170 Max torque (N.m) 7500 Power head feeding stroke (mm) 3400 Mast sliding frame stroke (mm) 900 Lifting force (kN) 70 Lifting speed (m/min) 0~5(adjustable)/7/23/30 Feeding force (kN) 36 Feeding speed (m/min) 0~10(adjustable)/14/46/59 Diesel or Electric engine is alternative
Electric engine
Diesel engine55+18.5
92Dimension(L*W*H)(mm) 5400*2100*2000 Weight(kg) 6000 Our A series full hydraulic crawler type anchoring drilling rig has the following 5 modes: AMG-135D, AMG-150D, AMG-150D2, AMG-135H, AMG-150H.
