- full hydraulic crawler type anchoring drill rig
Model No.:
AMG-135HPrice:
Pls contact us.Minimum Order:
1
Product Abstract:
Wanna get a FREE quote now? Just click the below FREE QUOTE button. The experts will get back to you as soon as possible.
- Product Description

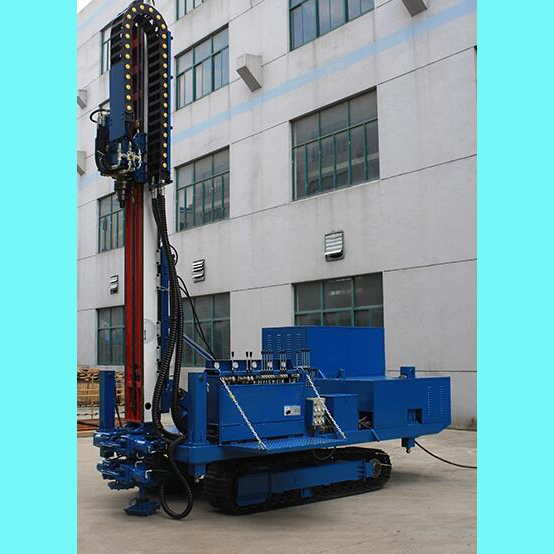

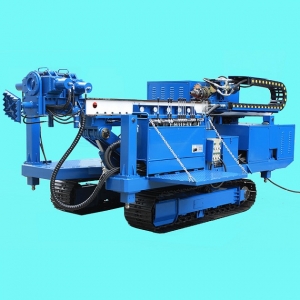

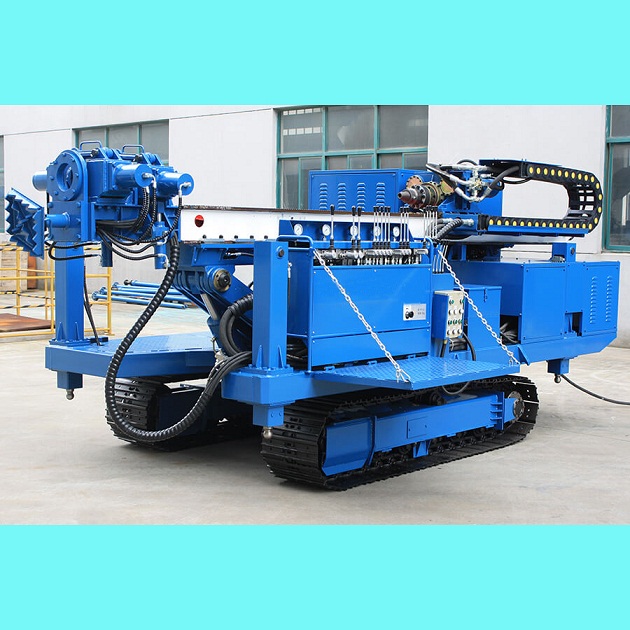

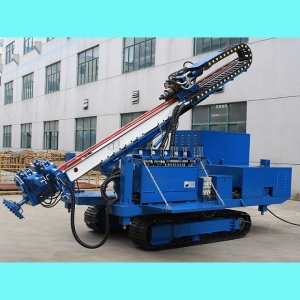

- AMG-135H Product Abstract:1. Machine type: full hydraulic crawler type anchoring drilling rig2. Brand: iAEG3. Model: AMG-135H4. Drilling diameter: φ150-φ250mm Drilling depth: 100-140mAMG-135H Product Description and Applications:AMG-135H crawler type anchor drilling rig is suitable for wall protection of foundation pit and building displacement.It can do borehole drilling with casing drilling tools or do synchronous borehole drilling with casing and drilling rods.It has the function of jet-grouting pilling and enlarged anchor construction (soft soil reinforcement, foundation improvement).1. Cover: It protects key hydraulic parts from pollution.2. Landing leg: It protects hydro-cylinder from destroy, and improves the bearing strength.3. Track: It effectively prevent the subsidence, work on comprehensive stratum.4. Hoist: The borehole height is adjustable to be more flexible.5. Auto turn plate: Dispense with labor, more easy and convenient.6. Diverter (through hole): Necessary device for enlarged anchor construction.7. Rotary head: It adopt double hydraulic motor power, which has large input torque and increase balance. It is equipped with retractable type joint that can extend operational life of drilling rods.8. Radiator system: According to local special construction condition, optimize its radiator system, which guarantees the hydraulic system would keep its outdoor temperature of minimum is 45?, the max is 70?.AMG-135H Main Construction characters:1. Equipped with appropriative casing-followed drill tools (such as drilling rod, casing pipe, eccentric bit, etc). In unstable stratum, it can use casing rods to do wall protecting drilling, and equipped with suitable drilling bits to finish the hole drilling. It is with high efficiency and excellent quality.2. This drilling rig is suitable for deep foundation pit. By changing to jet grouting module, it can implement jet grouting construction. This drilling rig is also suitable for construction in geothermal borehole, precipitation well, mini steel-pipe pile, and mini sets-in-pipe pile.3. Except for crawler chassis, turn plate, clamping and breaking device, we also supply other spare parts for clients to choose. Users can choose relative accessories suitable for your construction when you purchase our drilling rigs.AMG-135H Main Technical Date Sheet:Hole diameter (mm)φ150~φ250Hole depth (m)100~140Rod diameter (mm)φ89,φ102,φ114Hole angle (°)0~90Rotary speed (r/min)10,20,25,40,50,60,70, 100,120,140Max torque (N.m)6800Power head feeding stroke (mm)3400Mast sliding frame stroke (mm)1500Lifting force (kN)65Lifting speed (m/min)0~2.8(adjustable)/7/18/25Feeding force (kN)33Feeding speed (m/min)0~1.4(adjustable)/14/36/50Diesel or Electric engine is alternativeDiesel engine Power(kW)Power(Electric engine)(kW)8255+18.5+2.2Dimension (L*W*H)(mm)5400*2100*2200Weight (kg)7000Our A series full hydraulic crawler type anchoring drilling rig has the following 5 modes: AMG-135D, AMG-150D, AMG-150D2, AMG-135H, AMG-150H.
